(12-20) Aprilia RSV4 Stage 1+ ECU Flash With Tuner

$895.00

(12-20) Aprilia RSV4 Stage 1+ ECU Flash With Tuner

$895.00

Aprilia RSV4 Tuning Solutions, Available Worldwide From The Comfort Of Your Own Home!

Quantity
SKU: BTHHRSV4

Description

THIS PRODUCT IS 50 STATE LEGAL (C.A.R.B. EO# D-868-9)

MAKE SURE TO REVIEW THE TABS ABOVE: HANDHELD, DYNO RESULTS, RESOURCES AND MORE INFO!

Through careful testing of the stock ECU and Race ECU calibration, we were able to find 22 power maps and limiters holding back the otherwise stout 180HP powerplant. Our RSV4 Stage 1+ ECU Calibration with Handheld Tuner converts the bike to full "Alpha-N" fueling and utilizes the factory oxygen sensors for precise fuel corrections, both on and off throttle. Improvements in throttle response, ridability, cruising and of course, POWER were all immediately apparent. Limiters raised for racing and road course use where you need to extend gears is taken care of across the board.


ADVANTAGES WITH STAGE 1

  • On average, gains of 7-10HP were found over the Race ECU baseline on a typical exhaust/filter bike on 93 octane fuel (Larger gains with VP race fuel).
  • Early Fan-On - At 195 degrees, your Aprilia starts to pull power from the engine.  We change this to 185 degrees.
  • Changes to fueling including part, mid and full throttle while in AlphaN configuration.
  • Optimization of ignition timing at part and mid throttle for all fuel qualities.
  • Adjustments to torque limiting to allow the bike to make 100% of it’s available engine torque.
  • Changes to rev limiter per-gear tables for widest and safest possible powerband.
  • Aggressive adjustments to engine braking along with decel fueling for road course use.
  • Changes in factory unstable engine idle for stability and consistency off throttle.
  • Changes to a full 100% throttle opening in all modes, verses a limited table.
  • Gains throughout the whole curve on all fuel qualities with no loss in power anywhere on the RPM band.
  • Changes to ABS, DTC, and wheelie intervention for more available power and control for a performance oriented rider.

DYNO TESTING


Affirm Financing

Don't be fooled by imitations with empty promises, see why everyone uses us:

CLICK HERE TO LEARN WHY YOU SHOULD PARTNER WITH BT MOTO

ANY FURTHER QUESTIONS OR LIKE TO SCHEDULE A CONSULTATION WITH A PERFORMANCE EXPERT?

REACH OUT TO [email protected] OR (877) 483-4031

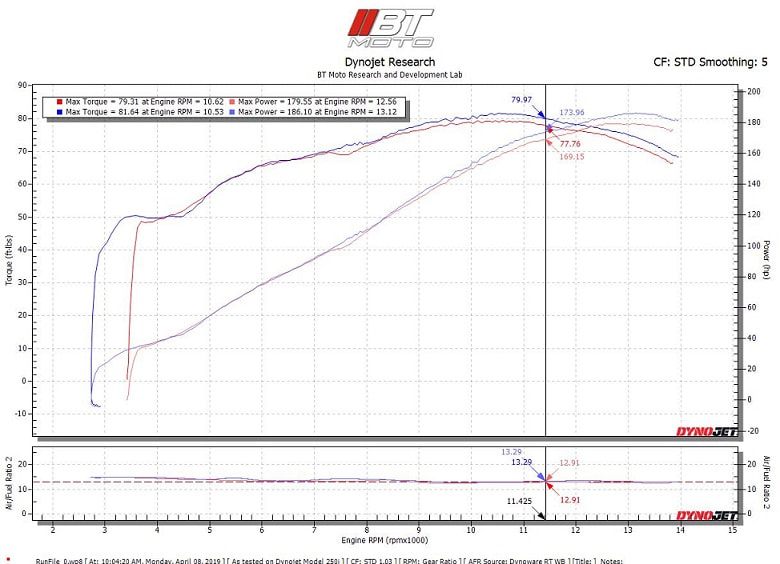

Dyno Testing

DYNO TESTING Factory spec 2018 Aprilia RSV4RR 1000

Baseline: 179WHP / 79WTQ

Stage 1: 186WHP / 81WTQ


THE BT MOTO HANDHELD TUNER

BT MOTO HANDHELD PERFORMANCE TUNER AND WHAT ARE THE BENEFITS OF HAVING ONE?

Custom tuning at your finger tips on your schedule.  Read and write your own motorcycles ECU from the comfort of your home. No need to bring your bike to a shop, our easy to use handheld can be used in your spare time with quick turn around. You now have a virtual custom personal tuner at your finger tips. Thoroughly tested by our own engineers, not just for its function but also durability, our easy to use handheld is just what you'll need to help get the most from your motorcycle!

CAN I JUST SEND IN MY ECU FOR FLASHING AND SPEND LESS? LET'S GO OVER THE ADVANTAGES.

  • NO DOWNTIME - No need to send in your ECU or remove it from your bike at all.  You order the handheld, it get's delivered to you nearly instantly, and you flash your bike on your time easily.  You never miss a day of riding and no effort removing the ECU. Any issues, you can revert back to the full stock state.
  • READ AND CLEAR CHECK ENGINE LIGHTS - Full code reading diagnostics included in the device.
  • STORE MULTIPLE MAPS - When you send in your ECU, you only get one map.  You might be thinking, "why would I need more than one map?".  Storing multiple maps means you're able to flash for different configurations.  If you're a serious track competitor, we can work with you to get you different mapping for different tracks.  If, for example, you're add modifications to your stock bike, we can email you a file that takes the new exhaust into account with the changes you need to optimize your bike's new modifications with no mailing needed.
  • GO BACK TO STOCK ANYTIME - Not only can you store multiple files, you can also flash the original, stock file back into the bike at any time and for any reason for service, sales, and more.
  • ABILITY TO TUNE FUTURE BIKES - Customers swap bikes all the time! With our handheld tuner, you are able to put the first bike back to stock, then reset the device and use the same device on your next bike, with a simple and low cost transfer fee.
  • ANY ISSUES? We can resolve nearly anything remotely really quick with our engineering staff.
