2014–2024 Triumph Rocket 3 Stage 1+ ECU Flash Tune With Handheld Tuner
2014–2024 Triumph Rocket 3 Stage 1+ ECU Flash Tune With Handheld Tuner
Transform Your Rocket 3 into The Bike It Was Always Meant To Be
Description
THIS PRODUCT IS 50-STATE LEGAL (C.A.R.B. EO# D-868-18)
MAKE SURE TO REVIEW THE TABS ABOVE: HANDHELD, DYNO RESULTS, RESOURCES AND MORE INFO!
25 build series have new locked ECU part number 6001-19WN - we are working this out in future
2014-2024 TRIUMPH ROCKET 3
The 2014–2024 Triumph Rocket 3 / Rocket III platform is known for massive displacement and torque, but the factory ECU calibration leaves a significant amount of performance on the table.
BT Moto developed our Stage 1+ ECU Flash Tune for the Triumph Rocket 3 as a true OEM+ solution for both the earlier 2300cc models and newer 2500cc Rocket 3 platform. Instead of relying on piggyback fuel controllers, external tuning boxes, Android tablets, or unnecessary hardware, we recalibrate the factory ECU directly.
The result is stronger acceleration, improved throttle response, a broader usable powerband, and significantly more horsepower while retaining the smooth operation and factory functionality expected from the Rocket 3.
Best of all, tuning is completed with the BT Moto Handheld Tuner, allowing you to read and flash your motorcycle's ECU from home and return the bike to its original calibration whenever needed.
STAGE 1+ ECU TUNE FEATURES
- Factory torque restrictions recalibrated to allow the engine to deliver substantially more of its available performance
- Engine torque request tables increased from approximately 60% to 100% where applicable
- Ignition timing optimized for readily available pump gasoline
- Lambda and fueling targets optimized for horsepower, drivability, and cruising efficiency
- Electronic throttle mapping recalibrated for a more direct and responsive connection between the throttle and engine
- Factory throttle restrictions in 1st, 2nd, and 3rd gear removed where applicable
- RPM limiter increased from approximately 6,950 RPM to 7,500+ RPM, depending on engine and model year
- Factory speed limiter increased
- Improved midrange power and roll-on acceleration
- Stronger high RPM power delivery and an extended usable powerband
- Per cylinder fueling optimization using the factory ECU strategy
- Optimized thermal management for cooler engine operating temperatures
- Earlier cooling fan activation, a BT Moto exclusive calibration feature
- Improved overall throttle response and rideability
- Calibration support for popular exhaust, intake, and other proven modifications
- Customized mapping based on your specific motorcycle and modification combination
- Calibration options to correct flashing ABS and Traction Control warning lights caused by aftermarket tire or sprocket sizes
- No piggyback tuning modules or additional electronics required
- Ability to return the ECU to its original stock calibration using the BT Moto Handheld Tuner
UNLOCK THE TRIUMPH ROCKET 3
The Triumph Rocket 3 produces enormous torque in factory form, but outright engine capability is only part of the equation. The factory ECU uses electronic throttle control, requested torque strategies, fueling, ignition, RPM limits, and other calibration tables to determine how much of that performance actually reaches the rider.
This is especially noticeable on the newer 2500cc Triumph Rocket 3 R and Rocket 3 GT, where electronic torque and throttle strategies can significantly restrict power delivery.
BT Moto addresses these restrictions directly inside the factory ECU rather than attempting to work around them with external hardware.
By properly recalibrating the torque model, electronic throttle mapping, ignition timing, fueling, RPM limiters, speed limiters, and thermal management strategies, we allow the engine to deliver substantially more of its available performance while maintaining OEM level integration.
The difference isn't limited to a peak horsepower number. The Rocket becomes more responsive throughout the rev range, pulls harder during roll on acceleration, and continues making power where the stock calibration begins to fall off.
DYNO PROVEN ROCKET 3 PERFORMANCE
Our Stage 1+ calibration has been extensively developed and tested on the Triumph Rocket 3 platform using same day, back-to-back Dynojet testing.
Stock, Pump Gas:
139 WHP / 148 WTQ
BT Moto Stage 1+, Pump Gas:
170 WHP / 151 WTQ
That's a gain of more than 30 wheel horsepower on the newer 2500cc Rocket 3 while retaining excellent rideability.
More importantly, removing the restrictive factory throttle mapping and extending the RPM limit completely changes the usable powerband. Instead of power falling away as the factory ECU begins closing the throttle and limiting engine output, the BT Moto calibration allows the Rocket 3 to continue pulling through the upper RPM range.
The result is the enormous low-end and midrange torque the Rocket is known for combined with substantially stronger top-end performance.
Dyno figures above represent testing performed on a 2021 Triumph Rocket 3 2500cc. Results and calibration changes may vary by model year, engine configuration, fuel quality, and installed modifications.
OEM+ ECU TUNING, NOT A PIGGYBACK
Our goal with the Triumph Rocket 3 was simple: create an OEM+ ECU tune that improves the motorcycle without turning it into a complicated tuning project.
There are no piggyback fuel controllers to install, no additional tuning boxes hanging from the wiring harness, and no unnecessary components that need to be removed from the motorcycle.
Instead, BT Moto modifies the calibration inside the factory ECU itself.
This allows the motorcycle to retain its factory electronics and integrated control systems while giving us access to the strategies that actually control engine performance.
Whether your Rocket 3 is completely stock or equipped with an aftermarket exhaust, intake, or other supported modifications, your calibration can be configured specifically for your setup.
TUNE YOUR ROCKET 3 FROM HOME
The BT Moto Handheld Tuner allows you to read and flash your Triumph Rocket 3 ECU without removing the ECU or bringing the motorcycle to a tuning shop.
Once your original ECU information is read, BT Moto can provide the appropriate calibration for your specific motorcycle and modifications. Tune files can be stored on the handheld, allowing you to change calibrations or return the motorcycle to its original stock ECU software when needed.
The handheld also provides ECU diagnostic functionality, including the ability to read and clear diagnostic trouble codes.
No ECU removal. No piggyback. No permanent modification. No unnecessary complexity.
More horsepower. More usable RPM. Better throttle response. Factory level integration.
This is how the Triumph Rocket 3 should have come from the factory.
Don't be fooled by imitations with empty promises, see why everyone uses us:
CLICK HERE TO LEARN WHY YOU SHOULD PARTNER WITH BT MOTO
HAVE ANY FURTHER QUESTIONS, OR WOULD YOU LIKE TO SCHEDULE A CONSULTATION WITH A PERFORMANCE EXPERT?
REACH OUT TO [email protected] OR (877) 483-4031

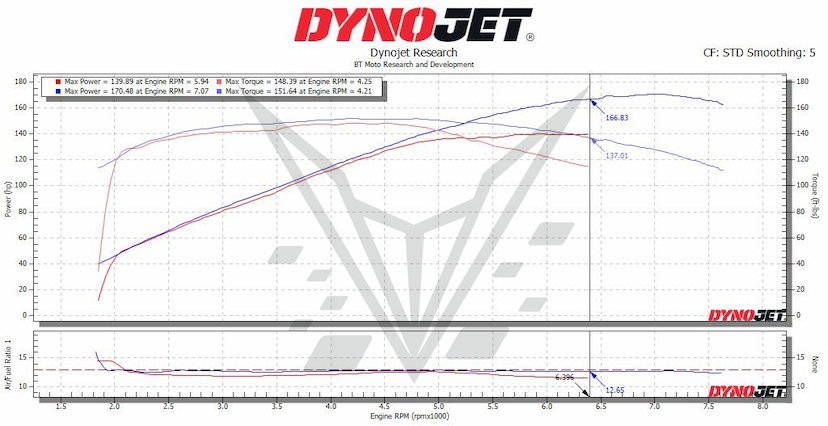

Dyno Testing
Stock 2021 Triumph Rocket 3 vs BT Moto Stage 1 (5th Gear)
INSANE POWER GAINS! Eliminating the throttle limiters and extending the RPM limiter is exactly what this bike needs to become an absolute beast. Peak to peak gains of over 30WHP is telling enough but the extended RPM limiter gives this bike a powerband it never had before.
Stock the bike was running a little rich, so we leaned it up a little to make optimal, safe power, and save you some gas as well. Rideability is not compromised with this power, the bike just gives you more of a thrill when you twist the throttle.
RED = STOCK, PUMP GAS - 139WHP / 148WTQ
BLUE = STAGE 1 with BT MOTO, PUMP GAS - 170WHP / 151WTQ

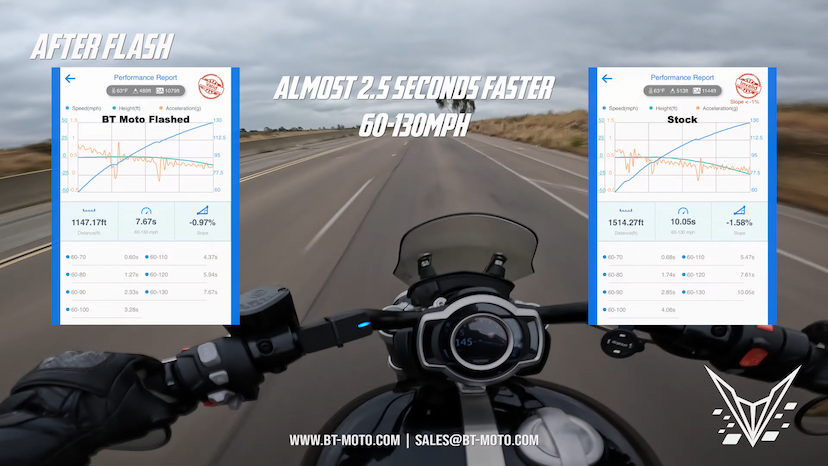

60-130MPH BEFORE AND AFTER
**All runs performed same day, back to back on an independent DynoJet on a completely stock and modified 2021 Triumph Rocket 3**
THE BT MOTO HANDHELD TUNER
BT MOTO HANDHELD PERFORMANCE TUNER AND WHAT ARE THE BENEFITS OF HAVING ONE?
Custom tuning at your fingertips on your schedule. Read and write your own motorcycle's ECU from the comfort of your home. No need to bring your bike to a shop, our easy-to-use handheld can be used in your spare time with quick turnaround. You now have a virtual custom personal tuner at your fingertips. Thoroughly tested by our own engineers, not just for its function but also for its durability, our easy-to-use handheld is just what you'll need to help get the most from your motorcycle!
CAN I JUST SEND IN MY ECU FOR FLASHING AND SPEND LESS? LET'S GO OVER THE ADVANTAGES.
- NO DOWNTIME - No need to send in your ECU or remove it from your bike at all. You order the handheld, it gets delivered to you nearly instantly, and you flash your bike on your time easily. You never miss a day of riding, and no effort in removing the ECU. If there are any issues, you can revert to the full stock state.
- READ AND CLEAR CHECK ENGINE LIGHTS - Full diagnostic of the ECU including the device.
- STORE MULTIPLE MAPS - When you send in your ECU, you only get one map. You might be thinking, "Why would I need more than one map?" Storing multiple maps means you're able to flash for different configurations. If you're a serious track competitor, we can work with you to get you different mapping for different tracks. If, for example, you're adding modifications to your stock bike, we can email you a file that takes the new exhaust into account with the changes you need to optimize your bike's new modifications with no mailing needed.
- GO BACK TO STOCK ANYTIME - Not only can you store multiple files, but you can also flash the original, stock file back into the bike at any time and for any reason for service, sales, and more.
- ABILITY TO TUNE FUTURE BIKES - Customers swap bikes all the time! With our handheld tuner, you are able to put the first bike back to stock, then reset the device and use the same device on your next bike, with a simple and low-cost transfer fee.
- ANY ISSUES? We can resolve nearly anything remotely, really quickly, with our engineering staff.
