(21-24) Kawasaki ZX-10R Stage 1+ Performance Calibration With Handheld Tuner
(21-24) Kawasaki ZX-10R Stage 1+ Performance Calibration With Handheld Tuner
The 2021 ZX-10R / RR is one of the most requested products we've had in recent memory. Unleash the full potential of your ZX10R/RR!
Description
THIS PRODUCT IS 50 STATE LEGAL (C.A.R.B. EO# D-868-13)
MAKE SURE TO REVIEW THE TABS ABOVE: HANDHELD, DYNO RESULTS, RESOURCES AND MORE INFO!
CONSIDERED THE BEST OTS TUNE FOR THIS PLATFORM!
The 2021 ZX-10R / RR is one of the most requested products we've had this year. Customers are very excited to see this bike unlocked and we were the first to finish this project for the community. Being the first to unlock the 2021 is never enough for us. We want to make sure that people are not only satisfied with our flashes, we want them to be amazed with the results. After taking some time to develop our mapping, we think we have something everyone will be happy with.
WHAT'S INCLUDED WITH STAGE 1 ZX-10R / RR FLASH
- Fueling Adjusted (per gear)
- Ignition Adjusted (per gear)
- Throttle De-restricted (per gear)
- Decel off throttle management
- Lower Fan-On Temp
- Increased RPM Limiter
- Removed Top Speed Limiter
THE DETAILS
- FUELING - With custom tuning we can target better AFR (air/fuel ratio) plots to enhance not only racing performance, but also cruising and partial throttle inputs.
- IGNITION - Optimized to make the most power while still being safe and reliable.
- THROTTLE DE-RESTRICTION - Giving you the ability to utilize 100% of the throttle is paramount in track situations where you need all the power you can get on demand. The factory file has a “dead spot” on the top end that kills the bikes power curve when it should be making the most. This also means any kind of straight line acceleration also suffers. We remove these factory restrictions to ensure a smooth and predictable throttle, all the way to redline.
- LOWER FAN-ON TEMP - Let’s face it, this bike rides a little on the hot side. To help not only the riders enjoyment but also keep the engine slightly cooler, we've lowered the fan-on temps.
- INCREASED RPM LIMITER (at customer request) - The stock RPM limiter is set to 13,800 RPM. We have been testing 14,200 RPM with zero negative side effects. We set the RPM limiter for 14,200 RPM in all gears. This helps you stay in the powerband longer and reduces the need to shift at the track.
- INCREASED TOP SPEED LIMITER - Removed so you can let the bike run free in any track environment.
- EXHAUST VALVE MANAGEMENT - Improved and optimized for peak performance and sound.
PLEASE NOTE
- YOUR BIKE MUST HAVE ONE OF THESE ECU NUMBERS: (21175-1647, 21175-1662, 21175-1684, 21175-1643, 21175-1724, 21175-1650, 21175-1652, 21175-1655, 21175-1653, 21175-1646, 21175-1654, 21175-1648, 21175-1704, 21175-1649, 21175-1702, 21175-1685 and Race ECU).
- If your bike has a different ECU number EMAIL US BEFORE PURCHASE. Your ECU number can be found on the ECU itself in the tail of the bike. We found the ECU number we listed is almost all 2021 ZX-10R's. We will be working to add more and will update this page when we do.
- Due to the sensitive nature of the ZX-10R's AFR (air/fuel ratio) and the platforms almost endless aftermarket options, the file we deliver you may need the fueling to be adjusted to meet your bikes individual needs. In this instance of extreme racing or wanting every last horsepower, we recommend a piggyback fuel controller and wideband or an "auto-tuner" that can aid you in correcting your fuel maps under real life condition (if needed).
Videos and Content
Don't be fooled by imitations with empty promises, see why everyone uses us:
CLICK HERE TO LEARN WHY YOU SHOULD PARTNER WITH BT MOTO
ANY FURTHER QUESTIONS OR LIKE TO SCHEDULE A CONSULTATION WITH A PERFORMANCE EXPERT?
REACH OUT TO [email protected] OR (877) 483-4031

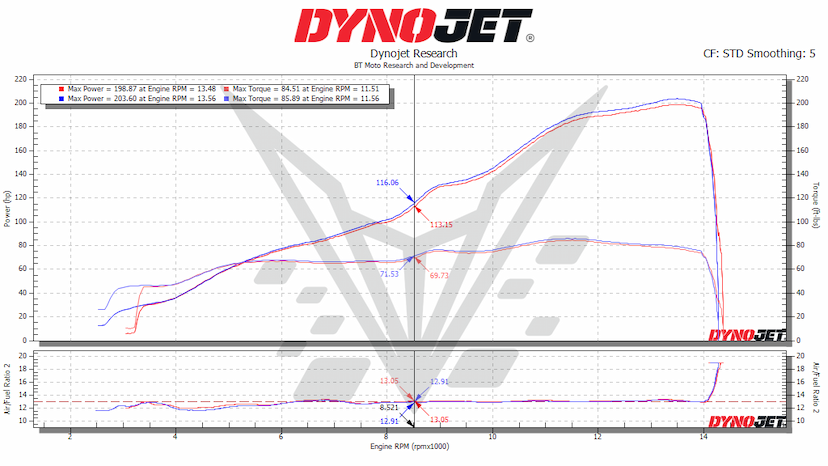

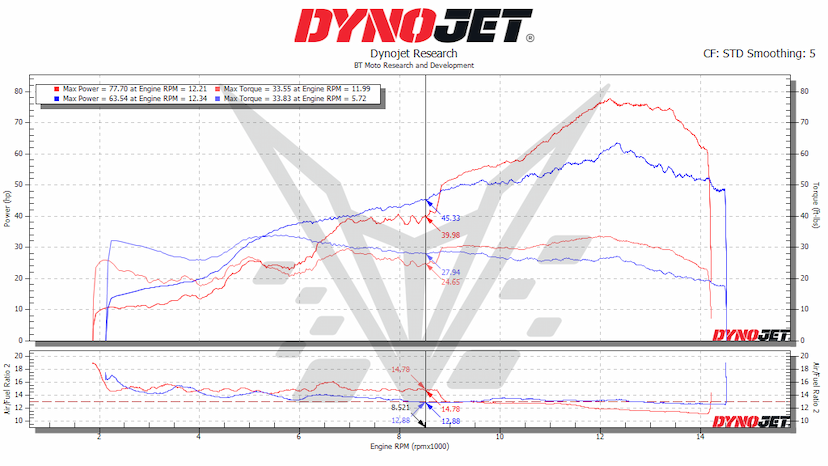

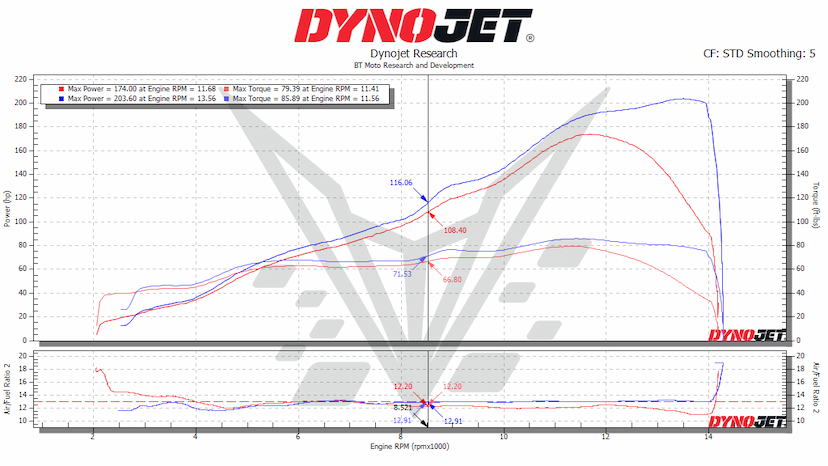

Dyno Testing
DYNO PROVEN
Our flashing removes factory restrictions allowing the ZX10 to show its full capability. You can see an insane amount of power added to the top end of ZX10 as well as significant midrange gains. This is like a completely different motorcycle now!This ZX10 came in with slip on exhaust and a filter. All testing done with same mods and all testing performed on 93 pump gas, same day. You can see how lean the factory mapping is, and how restricted the top end rpm throttle bodies are.
Factory Tuning - 168whp / 77wtq
BT Moto Flashed - 193whp / 81wtq
THE BT MOTO HANDHELD TUNER
WHAT IS A "FLASH AT HOME" HANDHELD PERFORMANCE TUNER AND WHAT ARE THE BENEFITS OF HAVING ONE?
Custom tuning at your finger tips on your schedule. Read and write your own motorcycles ecu in the comfort of your home. No longer need to bring your bike to a shop, buying a $1000 hardware kit + time + dyno then paying for time of a technician one time deal. You now have a virtual custom personal tuner at your finger tips. This is a for life purchase with full flexibility to transfer to other motorcycles in the future. Thoroughly tested by our own engineers, not just for its function but also durability.
CAN I JUST SEND IN MY ECU FOR FLASHING AND SPEND LESS? Let's see the breakdown.
- NO DOWNTIME - No need to send in your ECU or remove it from your bike at all. You order the handheld, it get's delivered to you nearly instantly, and you flash your bike on your time easily. You never miss a day of riding and no effort removing the ECU. Any issues, you can revert back to the full stock state.
- READ AND CLEAR CHECK ENGINE LIGHTS - Full diagnostic of the ecu including the device.
- STORE MULTIPLE MAPS - When you send in your ECU, you only get one map. You might be thinking, "why would I need more than one map?". Storing multiple maps means you're able to flash for different configurations. If you're a serious track competitor, we can work with you to get you different mapping for different tracks. If, for example, you're add modifications to your stock bike, we can email you a file that takes the new exhaust into account with the changes you need to optimize your bike's new modifications with no mailing needed.
- GO BACK TO STOCK ANYTIME - Not only can you store multiple files, you can also flash the original, stock file back into the bike at any time and for any reason for service, sales, and more.
- ABILITY TO TUNE FUTURE BIKES - Customers swap bikes all the time! With our handheld tuner, you are able to put the first bike back to stock, then reset the device and use the same device on your next bike, with a simple and low cost transfer fee.
- ANY ISSUES? We can resolve nearly anything remotely really quick with our engineering staff.
