2025-2026 Triumph Rocket 3 Stage 1+ ECU Flash Tune With Handheld Tuner
2025-2026 Triumph Rocket 3 Stage 1+ ECU Flash Tune With Handheld Tuner
Transform Your Rocket 3 into The Bike It Was Always Meant To Be
Description
THIS PRODUCT IS 50-STATE LEGAL (C.A.R.B. EO# D-868-32)
MAKE SURE TO REVIEW THE TABS ABOVE: HANDHELD, DYNO RESULTS, RESOURCES AND MORE INFO!
THIS PRODUCT IS FINALLY AVAILABLE VIA OUR HANDHELD TUNER! ALLOWING YOU TO SEAMLESSLY TUNE YOUR MOTORCYCLE FROM THE COMFORT OF YOUR OWN HOME OR SHOP.
2025–2026 Triumph Rocket 3 2500cc Stage 1 ECU Tune
The 2025–2026 Triumph Rocket 3 delivers massive torque from its 2,458cc three cylinder engine, but the factory ECU calibration still places significant electronic limits on throttle opening, requested torque, RPM, and overall power delivery.
BT Moto developed our Stage 1 ECU tune for the 2025–2026 Triumph Rocket 3 to remove those unnecessary factory restrictions while maintaining the refinement, reliability, and functionality of the original ECU.
This is a true OEM+ ECU calibration for the new locked Rocket 3 ECU. No piggyback fuel controller, additional tuning module, or unnecessary emissions system removal is required. Instead, we recalibrate the factory ECU directly, allowing the motorcycle to operate the way Triumph's 2.5 liter engine is capable of operating.
The result is substantially stronger acceleration, improved throttle response, a broader powerband, and 20+ WHP gains in our back-to-back dyno testing on pump gas.
STAGE 1 ECU TUNE FEATURES
- Unlocks the factory torque restrictions found in the 2025–2026 Rocket 3 ECU
- Engine torque request increased from approximately 60% to 100%
- 20+ WHP gains demonstrated through back-to-back dyno testing
- Ignition timing optimized for readily available pump gasoline
- Lambda and fueling targets optimized for power, drivability, and cruising efficiency
- Factory electronic throttle mapping recalibrated for a much more direct response
- Restrictive throttle mapping in 1st, 2nd, and 3rd gear removed
- RPM limiter increased from approximately 6,950 RPM to 7,500 RPM
- Factory speed limiter increased
- Improved midrange power and roll-on acceleration
- Sharper, more predictable throttle response
- Per-cylinder fueling optimization using the factory ECU strategy
- Optimized thermal management for cooler operating temperatures
- Calibration support for popular exhaust, intake, and other proven modifications
- Customized mapping based on your motorcycle's specific modification combination
- Tire and sprocket calibration options to address flashing ABS and Traction Control warnings caused by non-standard sizing
- Retains the factory ECU and OEM electronics, no piggyback tuning modules required
UNLOCK THE 2025–2026 TRIUMPH ROCKET 3
The latest Triumph Rocket 3 Storm R and Rocket 3 Storm GT use an electronically controlled torque based ECU strategy. Even with the enormous displacement and torque potential of the 2,458cc triple cylinder engine, the factory calibration can limit requested torque and throttle opening under certain operating conditions.
BT Moto recalibrates these strategies rather than simply adding fuel or manipulating external sensor signals.
By properly addressing the torque model, electronic throttle tables, ignition mapping, fueling, RPM limiters, and related ECU strategies, the engine is able to deliver significantly more of its available performance.
The difference can be felt throughout the powerband — especially during hard acceleration and higher RPM operation where the stock calibration begins to restrict performance.
DYNO PROVEN PERFORMANCE
Our Stage 1 calibration was developed through extensive testing of the factory 2025 Triumph Rocket 3 ECU and validated with same day, back-to-back Dynojet testing.
Stock, California 91 Octane:
153 WHP / 155 WTQ
BT Moto Stage 1, California 91 Octane:
175 WHP / 157 WTQ
That's a gain of more than 20 wheel horsepower on pump gas, but peak horsepower only tells part of the story.
Removing the factory throttle and torque restrictions allows the Rocket 3 to continue pulling harder through the upper RPM range, while the increased RPM limit extends the usable powerband beyond what is available with the stock ECU calibration.
The result is a Rocket 3 that feels substantially stronger without sacrificing the smoothness and refinement expected from a modern Triumph.
OEM+ TUNING, NOT A PIGGYBACK
Our goal isn't to make the Rocket 3 behave like a poorly tuned race bike.
It's to make it feel like an unrestricted factory version of the motorcycle.
The BT Moto Stage 1 tune retains the factory ECU and its integrated control strategies while optimizing the calibration inside it. There are no external fuel controllers to install, no wiring harnesses to modify, and no unnecessary hardware required.
Whether your Rocket 3 is completely stock or equipped with an aftermarket exhaust, intake, or other supported modifications, your calibration can be configured specifically for your setup.
More power. Better throttle response. A broader powerband. Factory level integration.
This is how the 2025–2026 Triumph Rocket 3 should have come from the factory.
THIS TUNING SERVICE APPLIES TO:
25+ Rocket (Storm/black editions) with the ECU PART # 6001-2933-000
MAIL IN TUNING ONLY
Please note - We recommend you have our own OBD2 Scan tool to clear your check engine light (one time) after installing your ECU. We recommend the Autel AL319 and an OBD2 to EU5 adapter.
Scantool here: Click here
EU5 Adapter here: Click here
Don't be fooled by imitations with empty promises, see why everyone uses us:
CLICK HERE TO LEARN WHY YOU SHOULD PARTNER WITH BT MOTO
HAVE ANY FURTHER QUESTIONS, OR WOULD YOU LIKE TO SCHEDULE A CONSULTATION WITH A PERFORMANCE EXPERT?
REACH OUT TO [email protected] OR (877) 483-4031
Dyno Testing

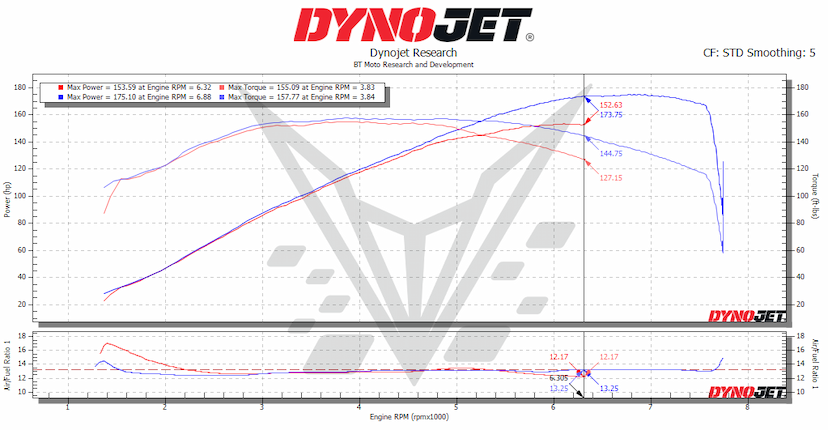

Stock 2025 Triumph Rocket 3 vs BT Moto Stage 1 (5th Gear).
INSANE POWER GAINS! Eliminating the throttle limiters and extending the RPM limiter is exactly what this bike needs to become an absolute beast. Peak to peak gains of over 20WHP is telling enough but the extended RPM limiter gives this bike a powerband it never had before. While the older Rocket 3 saw a larger gain from our flashing, the new 2025 Rocket 3 also makes more power than it's predecessor (see our dyno video for comparisons).
Stock the bike was running a little rich, so we leaned it up a little to make optimal, safe power, and save you some gas as well. Rideability and reliability is not compromised with this power, the bike just gives you more of a thrill when you twist the throttle.
RED = STOCK, PUMP GAS - 153WHP / 155WTQ
BLUE = STAGE 1 with BT MOTO, PUMP GAS - 175WHP / 157WTQ
**All runs performed same day, back to back on an independent DynoJet**
**Testing performed with California ACN 91 octane pump gas. Usage of a lower octane will yield smaller power gains. Higher octane larger gains**
THE BT MOTO HANDHELD TUNER
BT MOTO HANDHELD PERFORMANCE TUNER AND WHAT ARE THE BENEFITS OF HAVING ONE?
Custom tuning at your fingertips on your schedule. Read and write your own motorcycle's ECU from the comfort of your home. No need to bring your bike to a shop, our easy-to-use handheld can be used in your spare time with quick turnaround. You now have a virtual custom personal tuner at your fingertips. Thoroughly tested by our own engineers, not just for its function but also for its durability, our easy-to-use handheld is just what you'll need to help get the most from your motorcycle!
CAN I JUST SEND IN MY ECU FOR FLASHING AND SPEND LESS? LET'S GO OVER THE ADVANTAGES.
- NO DOWNTIME - No need to send in your ECU or remove it from your bike at all. You order the handheld, it gets delivered to you nearly instantly, and you flash your bike on your time easily. You never miss a day of riding, and no effort in removing the ECU. If there are any issues, you can revert to the full stock state.
- READ AND CLEAR CHECK ENGINE LIGHTS - Full diagnostic of the ECU including the device.
- STORE MULTIPLE MAPS - When you send in your ECU, you only get one map. You might be thinking, "Why would I need more than one map?" Storing multiple maps means you're able to flash for different configurations. If you're a serious track competitor, we can work with you to get you different mapping for different tracks. If, for example, you're adding modifications to your stock bike, we can email you a file that takes the new exhaust into account with the changes you need to optimize your bike's new modifications with no mailing needed.
- GO BACK TO STOCK ANYTIME - Not only can you store multiple files, but you can also flash the original, stock file back into the bike at any time and for any reason for service, sales, and more.
- ABILITY TO TUNE FUTURE BIKES - Customers swap bikes all the time! With our handheld tuner, you are able to put the first bike back to stock, then reset the device and use the same device on your next bike, with a simple and low-cost transfer fee.
- ANY ISSUES? We can resolve nearly anything remotely, really quickly, with our engineering staff.
