(22-26) Suzuki GSX-S 950 / GSX-S 1000/GX Stage 1+ Performance Calibration With Handheld Tuner

MAKE SURE TO REVIEW THE TABS ABOVE: HANDHELD, DYNO RESULTS, RESOURCES AND MORE INFO!

With the introduction of Suzuki's latest generation electronics, the GSX-S1000 and GSX-S950 received many of the same modern ECU strategies found throughout Suzuki's newest performance platforms. Unfortunately, they also received substantial factory restrictions that leave significant performance on the table.

The GSX-S1000 ECU limits electronic throttle opening to approximately 71% at high RPM, even when the rider is requesting 100% throttle. The GSX-S950 is restricted even further, with approximately 55% maximum throttle opening in restricted configurations. In other words, you can twist the throttle completely open while the ECU is still commanding dramatically less airflow into the engine.

BT Moto developed our GSX-S1000 and GSX-S950 Stage 1+ ECU Flash to properly address these restrictions while improving fueling, ignition, electronic throttle control, throttle response, quickshifter operation, and overall rideability.

Months of R&D on both the dyno and the street allowed us to develop a calibration focused on more than a peak horsepower number. From light to light and normal street riding to high RPM acceleration and track use, the BT Moto calibration transforms how the GSX-S delivers its power.

GSX-S1000 & GSX-S950 DYNO RESULTS

All dyno comparisons shown in the Dyno Results tab were performed back to back in 5th gear on the same DynoJet, allowing us to directly compare the factory calibration against the BT Moto Stage 1+ ECU Flash.

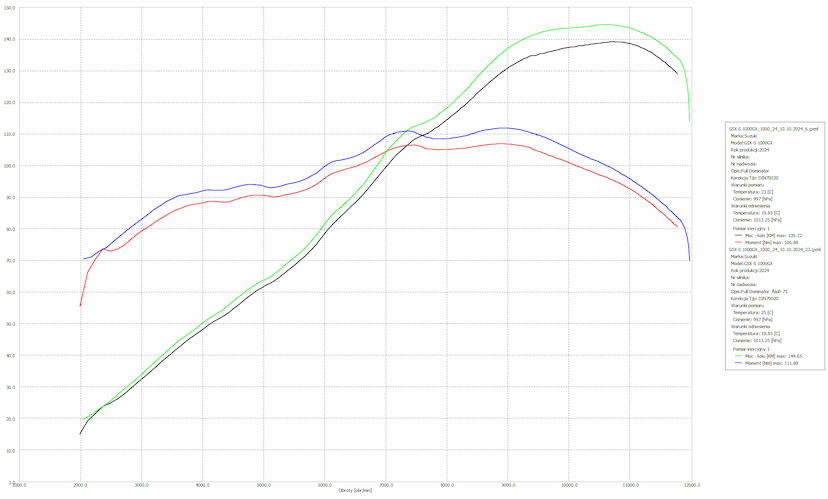

GSX-S1000 DYNO RESULTS

The GSX-S1000 produced approximately 138.9 WHP in stock form. With the BT Moto Stage 1+ calibration installed, peak output increased to approximately 144.7 WHP.

STOCK GSX-S1000: ~138.9 WHP
BT MOTO STAGE 1+: ~144.7 WHP
PEAK TO PEAK GAIN: ~+5.8 WHP

Peak horsepower does not show the entire advantage of the calibration. The factory ECU closes the electronic throttle to approximately 71% at high RPM. BT Moto addresses this restriction and allows the engine to utilize up to 100% commanded throttle, producing significantly stronger high RPM power delivery and acceleration.

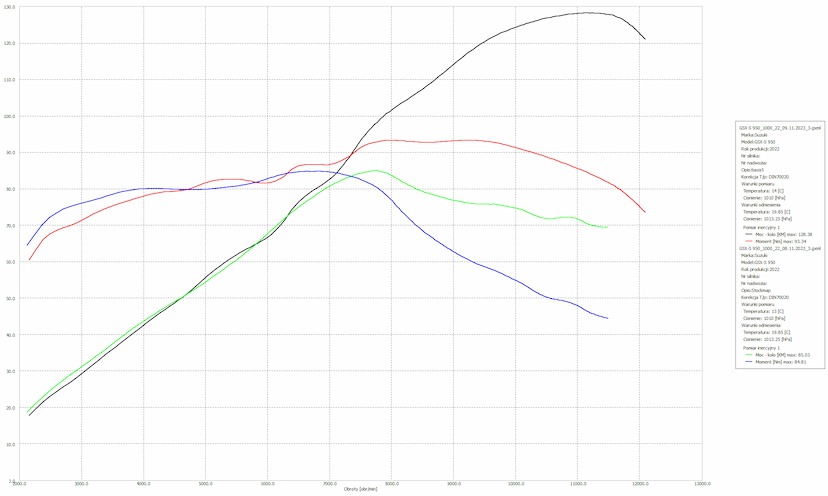

GSX-S950 DYNO RESULTS

The GSX-S950 demonstrates just how restrictive the factory calibration can be. Our dyno testing showed approximately 84.8 WHP in the restricted configuration. After installing the BT Moto Stage 1+ calibration, output increased to approximately 128.4 WHP.

STOCK / RESTRICTED GSX-S950: ~84.8 WHP
BT MOTO STAGE 1+: ~128.4 WHP
PEAK TO PEAK GAIN: ~+43.5 WHP

The dramatic improvement comes largely from properly addressing the GSX-S950's severe factory electronic throttle restriction. In restricted configurations, the ECU may command only approximately 55% throttle opening even when the rider requests 100%. BT Moto recalibrates these ETV strategies to allow the engine to utilize its available airflow and performance.

Lower octane fuel may produce smaller power gains, while higher octane fuel can produce larger gains. See the Dyno Results tab above for the complete graphs and comparisons.

WHAT DOES THE FACTORY GSX-S ECU RESTRICT?

The factory Suzuki ECU controls much more than fuel and ignition. Electronic throttle opening, gear dependent ignition strategies, lambda targets, throttle response, deceleration behavior, quickshifter operation, temperature compensation, rev limits, and top speed are all controlled through the ECU.

The most significant restriction on these motorcycles is the Electronic Throttle Valve (ETV) strategy. The rider's throttle grip position does not necessarily equal the throttle opening being delivered by the ECU.

GSX-S1000: approximately 71% maximum throttle opening at high RPM
GSX-S950: approximately 55% maximum throttle opening in restricted configurations

BT Moto recalibrates these strategies so that when the rider requests full power, the ECU can deliver the airflow and throttle opening the engine is capable of using.

MORE THAN A WIDE OPEN THROTTLE DYNO TUNE

Peak horsepower is only one part of a properly developed motorcycle ECU calibration. The GSX-S spends much of its time operating at partial throttle, which is why our development is not focused solely on producing the largest number during a full throttle dyno pull.

BT Moto calibrates fueling, ignition, lambda targets, electronic throttle behavior, deceleration strategies, and other ECU functions throughout the usable throttle and RPM range.

The result is a GSX-S that doesn't just make more power. It delivers smoother throttle response, stronger usable acceleration, improved throttle control, and better overall rideability.

ADVANTAGES WITH BT MOTO STAGE 1+

• Optimized Lambda Targets – Lambda targets are adjusted at both part and full throttle for improved performance, smoother throttle response, and better overall rideability while retaining proper fuel correction and ram air compensation.
• Lower Cooling Fan Temperature – Fan activation is lowered to approximately 90°C to help manage engine temperature and reduce time spent in temperature based compensation or correction tables.
• Gear 1-6 Ignition Restrictions Addressed – Factory gear dependent ignition retard strategies are optimized across applicable riding modes for more consistent power delivery.
• GSX-S1000 ETV Restrictions Addressed – Factory electronic throttle limits of approximately 71% at high RPM are recalibrated to allow up to 100% commanded throttle and maximize available high RPM performance.
• GSX-S950 ETV Restrictions Addressed – Restricted configurations can limit throttle opening to approximately 55%. BT Moto recalibrates these strategies to allow up to 100% commanded throttle, resulting in dramatic horsepower gains depending on the original ECU configuration.
• Optimized A Mode – A Mode is calibrated for more direct throttle response and reduced factory restrictions.
• Optimized Rev Limiter – RPM limits are adjusted for improved performance while maintaining a focus on sustainable reliability.
• Improved Deceleration Mapping – Deceleration fueling and ETV strategies are refined for smoother on/off throttle transitions.
• Per Cylinder Ignition Optimization – Ignition tables are individually optimized by cylinder for greater tuning control and consistency.
• Per Cylinder & Per Gear Fueling – Fueling tables are optimized by cylinder and gear rather than relying solely on broad global adjustments.
• Ignition Dwell Optimization – Ignition dwell strategies are adjusted as part of the complete ECU calibration.
• Top Speed Limiter Removed – Factory top speed restrictions are properly addressed through the ECU calibration.
• Improved Quickshifter Performance – Faster optimized ignition cut / kill times help improve quickshifter operation and shift feel.

DEVELOPED FOR REAL WORLD PERFORMANCE

Our goal with the Suzuki GSX-S platform was never to create a calibration that only looks good on a dyno graph.

The motorcycle is tested and refined through a combination of dyno development and real world riding so that improvements made at full throttle also translate properly to normal street use.

From low speed throttle transitions and partial throttle cruising to high RPM acceleration, the calibration is developed as a complete package.

WHY CHOOSE BT MOTO FOR YOUR SUZUKI GSX-S?

Performance claims are easy to make. BT Moto backs our Suzuki GSX-S1000 and GSX-S950 ECU tuning with extensive dyno testing, real world development, proven performance, and experience developing high performance motorcycle ECU calibrations.

Our goal is to provide a complete tuning solution that improves more than a peak horsepower number. We focus on the ECU strategies that determine how the motorcycle accelerates, responds to throttle input, shifts, manages temperature, and delivers power throughout the usable RPM range.

CLICK HERE TO LEARN WHY YOU SHOULD PARTNER WITH BT MOTO​

QUESTIONS ABOUT YOUR GSX-S SETUP?

Have questions about the GSX-S1000 Stage 1+ tune, GSX-S950 ECU flash, exhaust compatibility, fuel requirements, or which configuration is right for your motorcycle? Our performance team can help determine the proper setup for your bike.

REACH OUT TO [email protected] OR (877) 483-4031

​LEGAL IN CALIFORNIA ONLY FOR RACING VEHICLES WHICH MAY NEVER BE USED, OR REGISTERED OR LICENSED FOR USE, UPON A HIGHWAY. THE MANUFACTURE, SALE, OFFER FOR SALE, OR INSTALLATION OF THIS PRODUCT MAY ALSO BE ILLEGAL NATIONWIDE UNDER THE FEDERAL CLEAN AIR ACT (42 U.S.C. § 7522(A)(3)).​
