2016-2026 Honda Africa Twin 1000/1100 (Manual and DCT) Stage 1+ ECU Flash With Tuner
2016-2026 Honda Africa Twin 1000/1100 (Manual and DCT) Stage 1+ ECU Flash With Tuner
Description
Now offering support for 24+ ECU, our tool fully reads the factory calibration during installation.
WHAT STAGE 1 TUNING INCLUDES
- Correct fueling on each cylinder in “Alpha N” mode
- Raised RPM limiter for much longer powerband (see (beyond US/Euro restricted limitations)
- Top speed limiter removed for better use of 5th-6th gear
- Raised load/torque limiters to match new ETV settings
- Revised throttle limitations to 100%, stock bike restricted to 66% throttle at redline, less than 50% for US
- Ignition timing adjustments for increased power and response
- Corrected fueling that was causing engine break-up and aggressive hesitation in midrange (see dyno graph)
- On off throttle transitions sorted for better around town and spirited riding, great feedback from Africa riders
- Up to +10HP/+8TQ gains
- Includes tuning for Manual and DCT bikes
WHY THIS IS THE BEST UPGRADE YOU CAN BUY
With limited options on the market for the African Twin, we used our experience with the RR-R and RR ecu and markets/platforms to come up with our own. Using our in-house motorcycle dynamometer and datalogging capabilities, we were able to systematically fix the glaring deficiencies in the platform.
- No OBD dyno tuned tuning options currently on the market
- Low power because throttle limiter
- Low top speed, no use of high rpm in 5th and 6th gear, even in Euro bikes
- Startup issues when exhaust is installed or even stock
- Issues when exhaust is installed, lean misfire, exhaust break up
- Acceleration that isn’t smooth through the entire RPM range due to inaccurate AFR
- Engine seems to struggle off idle to 4000rpm
- Power that seems to level off (flatten) after 8,000 RPM with the throttle limiting in place
** Please note these bikes are finicky with battery voltage and Lithium batteries. We recommend this specific battery charger to be used on the bike during any flash tuning. Battery Charger Click Here**
INCLUDES DYNO TESTING
Don't be fooled by imitations with empty promises, see why everyone uses us:
CLICK HERE TO LEARN WHY YOU SHOULD PARTNER WITH BT MOTO
HAVE ANY FURTHER QUESTIONS, OR WOULD YOU LIKE TO SCHEDULE A CONSULTATION WITH A PERFORMANCE EXPERT?
REACH OUT TO [email protected] OR (877) 483-4031
Dyno Testing

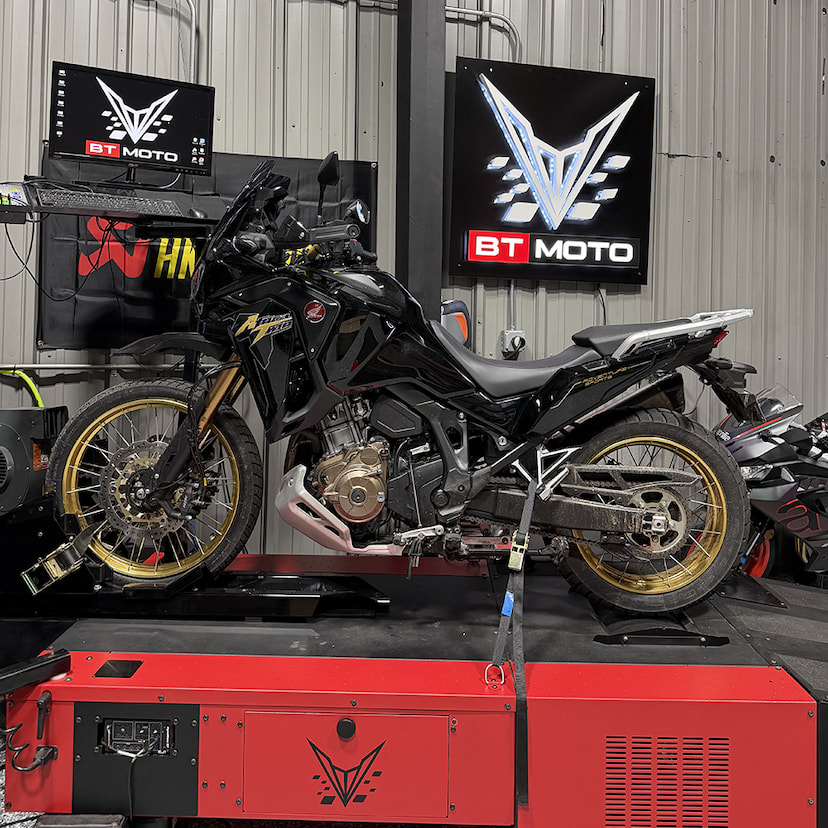

HONDA AFRICA TWIN DYNO TESTING

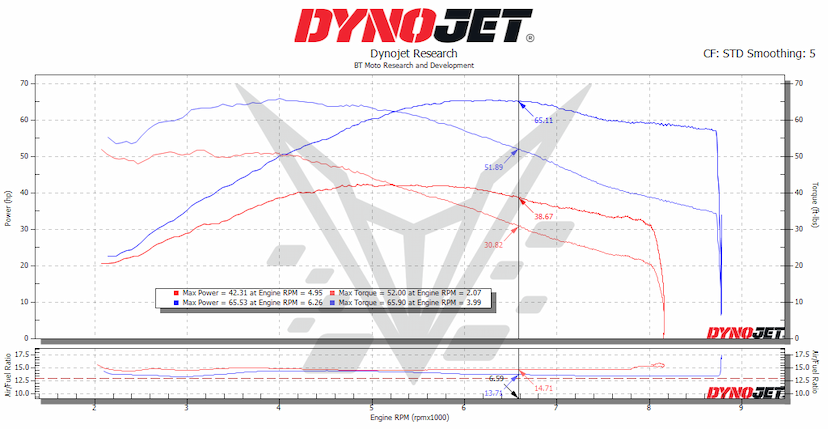

Below you will find dyno graphs representing part throttle gains between stock and BT Moto Stage 1 ECU mapping on a 2024 Honda Africa Twin. As you can see the part throttle gains are incredibly impressive.

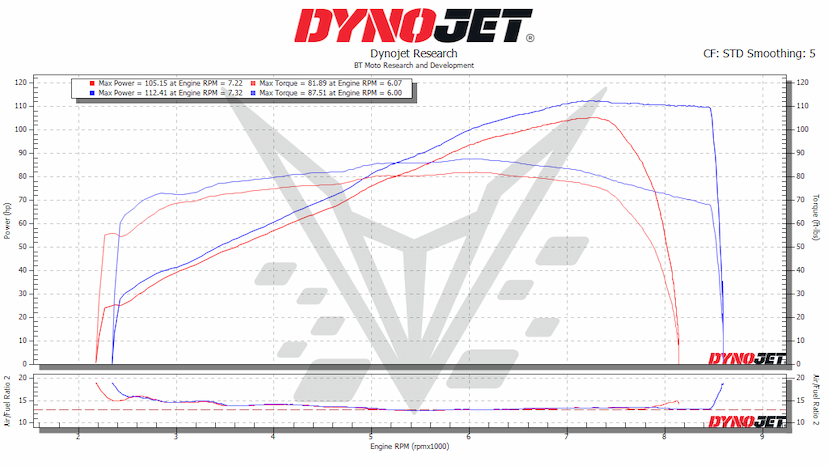

Below you will find stock ECU tuning vs BT Moto Stage 1 tuning on a 2024 Honda Africa Twin. White the full throttle gains aren't huge, the rideability improvements along with part throttle gains are incredible.

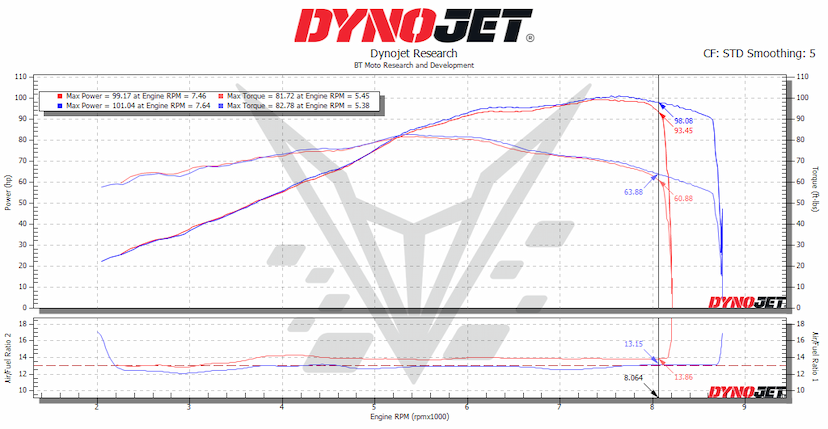

100% Throttle

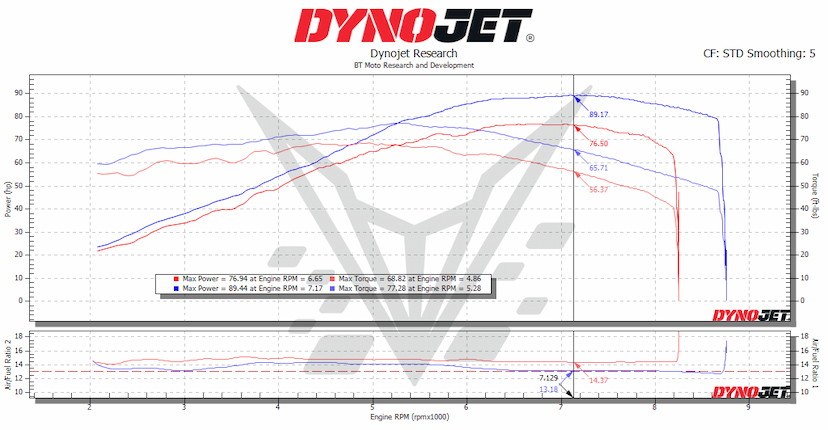

75% Throttle
50% Throttle

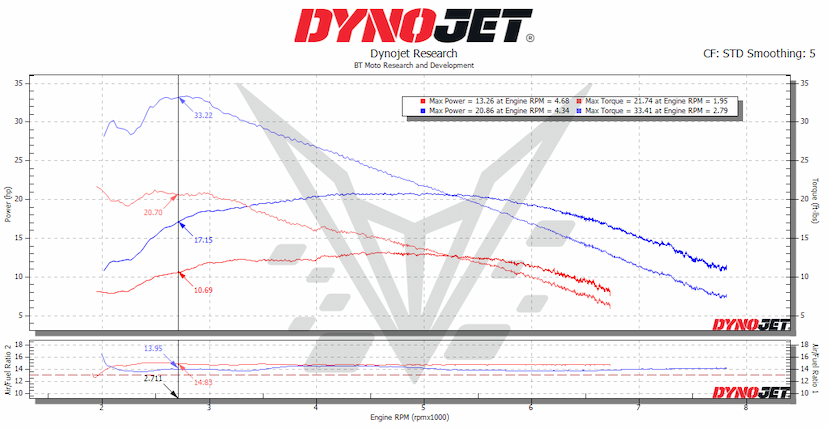

25% Throttle
THE BT MOTO HANDHELD TUNER
BT MOTO HANDHELD PERFORMANCE TUNER AND WHAT ARE THE BENEFITS OF HAVING ONE?
Custom tuning at your fingertips on your schedule. Read and write your own motorcycle's ECU from the comfort of your home. No need to bring your bike to a shop, our easy-to-use handheld can be used in your spare time with quick turnaround. You now have a virtual custom personal tuner at your fingertips. Thoroughly tested by our own engineers, not just for its function but also for its durability, our easy-to-use handheld is just what you'll need to help get the most from your motorcycle!
CAN I JUST SEND IN MY ECU FOR FLASHING AND SPEND LESS? LET'S GO OVER THE ADVANTAGES.
NO DOWNTIME - No need to send in your ECU or remove it from your bike at all. You order the handheld, it gets delivered to you nearly instantly, and you flash your bike on your time easily. You never miss a day of riding, and no effort in removing the ECU. If there are any issues, you can revert to the full stock state.
READ AND CLEAR CHECK ENGINE LIGHTS - Full diagnostic of the ECU including the device.
STORE MULTIPLE MAPS - When you send in your ECU, you only get one map. You might be thinking, "Why would I need more than one map?" Storing multiple maps means you're able to flash for different configurations. If you're a serious track competitor, we can work with you to get you different mapping for different tracks. If, for example, you're adding modifications to your stock bike, we can email you a file that takes the new exhaust into account with the changes you need to optimize your bike's new modifications with no mailing needed.
GO BACK TO STOCK ANYTIME - Not only can you store multiple files, but you can also flash the original, stock file back into the bike at any time and for any reason for service, sales, and more.
ABILITY TO TUNE FUTURE BIKES - Customers swap bikes all the time! With our handheld tuner, you are able to put the first bike back to stock, then reset the device and use the same device on your next bike, with a simple and low-cost transfer fee.
ANY ISSUES? We can resolve nearly anything remotely, really quickly, with our engineering staff.
