(18-24) Ducati Panigale V4/SF (1103) Race Induction Velocity Stack Kit
(18-24) Ducati Panigale V4/SF (1103) Race Induction Velocity Stack Kit
Description

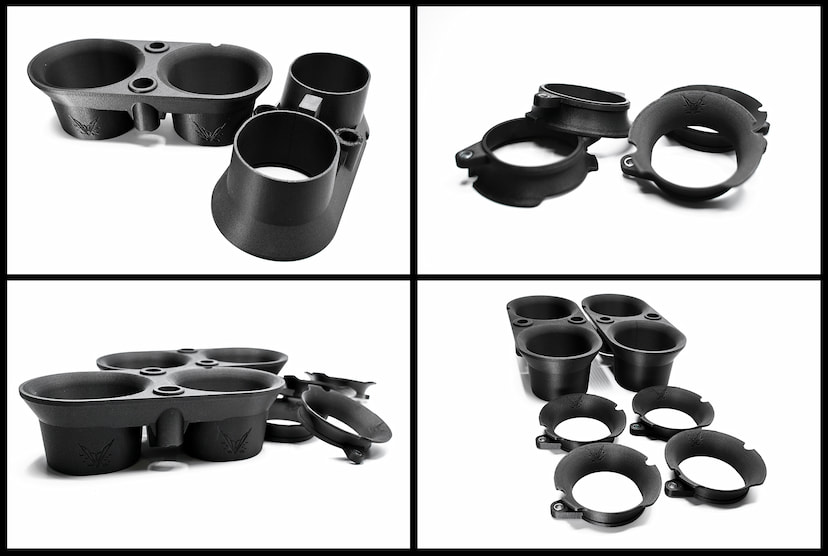

2018-2024 Ducati Panigale V4 / SF (ALL 1103cc Models) Velocity Stack Kit
With the success and positive feedback we've gotten from our Ducati tuning, we wanted to turn our focus to getting air into the engine in a more efficient way. Perfection takes years and we didn't bring this to market until we finally found a way to make a velocity stack we were proud to put our name on. Quick rush to market velocity stacks with no REAL data have been available and from them we learned shorter is not always better. Our custom velocity stacks not only give a very decent top-end power increase but also a midrange bump, making it a no-brainer modification. OEM level quality, straight forward install, these custom velocity stacks mimic what Ducati race engines have been trying to provide in sanctioned racing, but for your manufacturer spec motor. We managed to make more power where it matters without sacrificing that torquey punch that is widely considered the hallmark of the 1103cc V4 engine. We were able to create low, mid and high horsepower gains which is usually unheard of with an airbox change.
Experimenting with designs and studying all variations of the V4 motor,and how airflow model operated, we finally found a design that adds power with no downsides. We spent months testing and developing this exact design. We even tested all of our competitors to see where they fell short and how we could improve. We have found our design makes the best power for the 1103cc, 18-24 V4 engine. With our velocity stack kit, you can run factory tuning, UpMap / Akra tuning, or use our tuning that is specifically catered to this design, and with fantastic results. The more airflow (air filter / exhaust) and the better the octane used, the larger the gains. This product accomplishes all the goals we were aiming to hit.

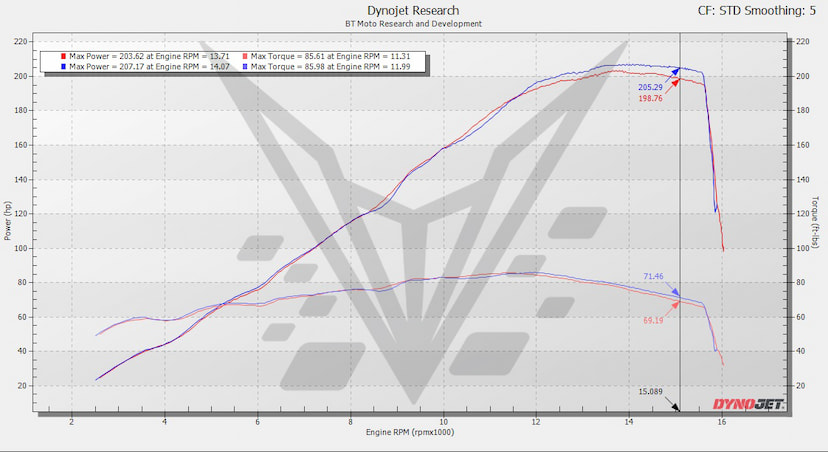

Our 2025 V4 testing is still in progress (new airbox).
*VELOCITY STACKS DO NOT REQUIRE FLASH PURCHASE BUT IT IS RECOMMENDED FOR ADVERTISED RESULTS*
***DISCLAIMER: FOR CLOSED COURSE COMPETITION USE ONLY. PENDING CARB APPROVAL. NOT INTENDED FOR STREET USE. PATENT PENDING***
Dyno Testing

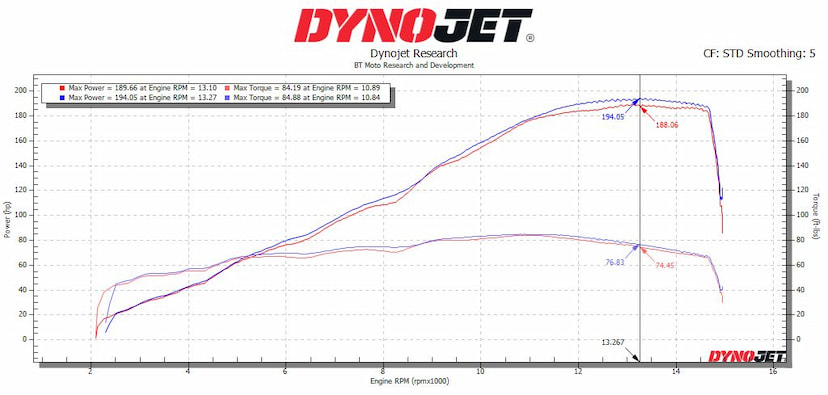

TEST SUBJECT: 2023 Ducati Panigale V4 With and Without our velocity stack kit, 5th gear.
RED = 23 V4 Ducati Performance Upmap with factory velocity stacks 93 Pump Gas - 189whp / 84wtq
BLUE = 23 V4 Ducati Performance Upmap with BT Moto race induction velocity stacks, 93 Pump Gas - 194whp / 84wtq
This graph below shows a no tuning test of the velocity stacks same day. This means all we did we install the velocity stacks with factory stock tuning. This testing was done in 5th gear for all passes. The gains are across the entire RPM range. The bike gained 6whp at peak RPM (again, keep in mind we did not change tuning when we installed our velocity stacks). The factory tuning power that plateaued past 11,000RPM finally carries more power. We are also making power across the entire RPM range. We're even making more torque!

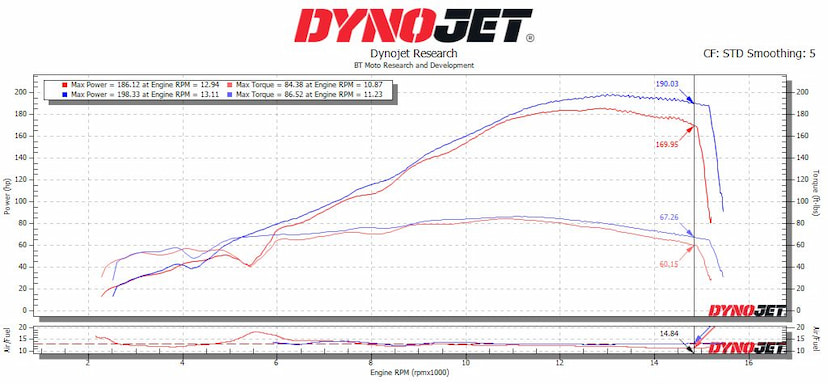

The graph below shows the same bike, which came in with a very poor "roll racing" tune from a competitor. We ran a baseline, swapped stacks and loaded our off the shelf V4 mapping and we achieved +28WHP at 5000rpm and 20+whp at 15,000RPM!
RED = 23 V4 with competitor tuning, 93 Pump Gas - 189whp / 84wtq
BLUE = 23 V4 with BT Moto tuning and race induction velocity stacks, 93 Pump Gas - 194whp / 84wtq
**All runs performed same day, back to back on our in-house DynoJet**
**Testing performed with 93 octane pump gas. Usage of a lower octane may affect power gains. Higher octane may give the bike larger gains**
Resources/Downloads
Compatibility
- Ducati Panigale V4/S/SP (20-24)
- Ducati Panigale V4 (18-19)
- Ducati Streetfighter V4 (20-25)
