(21-24) Aprilia RS 660 / Tuono 660 Stage 1+ ECU Flash With Tuner
(21-24) Aprilia RS 660 / Tuono 660 Stage 1+ ECU Flash With Tuner
Aprilia 660 Tuning Solutions, Available Worldwide From The Comfort Of Your Own Home!
Description
MAKE SURE TO REVIEW THE TABS ABOVE: HANDHELD, DYNO RESULTS, RESOURCES AND MORE INFO!
Through careful testing of the Stock ECU and Aprilia Race ECU calibrations, we were able to find 22 power maps and limiters holding back the otherwise stout 100HP powerplant. While the Tuono version is rated for 94HP, the final tuned number will be the same as the RS 660. That means bigger gains for the Tuono as it's more restricted than the RS 660.
With full in-person datalogging in our closed dyno cell, riding the bike on the street, and GPS speed testing, we were able to find what the engine really liked and disliked. Through careful logging of ignition timing, per cylinder fueling and thermal management limiters, we were able to write an excellent file that is powerful in all temperatures and covers all octanes.
Our Stage 1 Aprilia RS 660 ECU flash converts the bike to full “Alpha-N” fueling and utilizes the factory oxygen sensors for precise fuel corrections on and off throttle. Improvements in throttle response, rideability, cruising and of course, power, were all immediately apparent. 60-130MPH testing found a full second improvement from stock to flashed.
ADVANTAGES WITH STAGE 1
- On average, gains of 4HP peak and 10HP under the curve, over stock and MORE for Tuono. Even though this isn't a ton of peak power, we shaved over a full second off the 60-130.
- 2000 RPM more peak power over stock to carry to redline (see dyno tab)
- Early Fan-On. At 200 degrees, your Aprilia starts to pull power from the engine. We change this to lower temperature to avoid this power loss and stalling in stop and go traffic
- Changes to fueling including part, mid and full-throttle while in Alpha-N configuration per cylinder
- Optimization of ignition timing at part and mid throttle for all fuel qualities
- Adjustments to torque limiting to allow the bike to make 100% of its available engine torque at high load
- RPM limiter raised from 11,500RPM to 12,200RPM
- Adjustments to engine braking For road course use
- Changes in factory unstable engine idle for stability and consistency off-throttle
- Changes to a full 100% throttle opening in all modes, versus a limited table
- Gains midrange to redline on all fuel qualities with no loss in power anywhere on the RPM band
- Enabled turn signals in headlight LED
- Ability to derestrict the A2 35KW restricted bikes completely to full HP
VIDEO REVIEW AND DYNO TESTING
***DISCLAIMER: FOR CLOSED COURSE COMPETITION USE ONLY. PENDING CARB APPROVAL. NOT INTENDED FOR STREET USE***
Don't be fooled by imitations with empty promises, see why everyone uses us:
CLICK HERE TO LEARN WHY YOU SHOULD PARTNER WITH BT MOTO
HAVE ANY FURTHER QUESTIONS, OR WOULD YOU LIKE TO SCHEDULE A CONSULTATION WITH A PERFORMANCE EXPERT?
REACH OUT TO [email protected] OR (877) 483-4031
LEGAL IN CALIFORNIA ONLY FOR RACING VEHICLES WHICH MAY NEVER BE USED, OR REGISTERED OR LICENSED FOR USE, UPON A HIGHWAY. THE MANUFACTURE, SALE, OFFER FOR SALE, OR INSTALLATION OF THIS PRODUCT MAY ALSO BE ILLEGAL NATIONWIDE UNDER THE FEDERAL CLEAN AIR ACT (42 U.S.C. § 7522(A)(3)).
Dyno Testing
INDEPENDENT TESTING
The dyno results below are from a 2021 Aprilia RS 660 tested in Southern California. The bike was running 91 octane pump gas. You can see gains through the midrange that progresses more and more up top. You can see there's an extra two thousand RPM where the bike is carrying A LOT more power than the stock mapping. No changes were made to this bike other than flashing it with Stage 1. Results tested same day, same dyno, back to back. Keep in mind the Tuono version will see larger gains as it is more restricted than the RS 660.
Factory Tuning, 91 Pump Gas: 91WHP / 48WTQ
BT Moto Stage 1, 91 Pump Gas: 94WHP/ 49WTQ
The below dyno is a popular UpMap vs our Stage 1 tuning. You can see the UpMap actually makes less power than stock, but also extends the RPM more than stock as well. We were a little baffled how the UpMap made less peak power than stock.
Popular UpMap, 91 Pump Gas: 87WHP / 47WTQ
BT Moto Stage 1, 91 Pump Gas: 94WHP/ 49WTQ

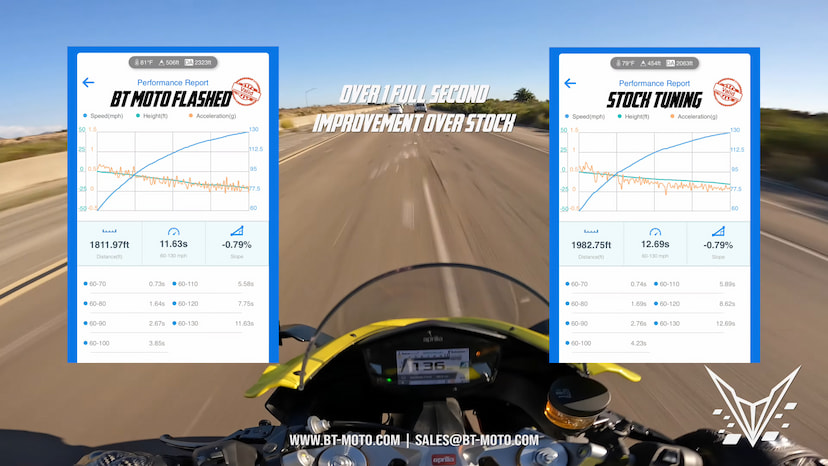

60-130MPH BEFORE AND AFTER
THE BT MOTO HANDHELD TUNER
BT MOTO HANDHELD PERFORMANCE TUNER AND WHAT ARE THE BENEFITS OF HAVING ONE?
Custom tuning at your fingertips on your schedule. Read and write your own motorcycle's ECU from the comfort of your home. No need to bring your bike to a shop, our easy-to-use handheld can be used in your spare time with quick turnaround. You now have a virtual custom personal tuner at your fingertips. Thoroughly tested by our own engineers, not just for its function but also for its durability, our easy-to-use handheld is just what you'll need to help get the most from your motorcycle!
CAN I JUST SEND IN MY ECU FOR FLASHING AND SPEND LESS? LET'S GO OVER THE ADVANTAGES.
NO DOWNTIME - No need to send in your ECU or remove it from your bike at all. You order the handheld, it gets delivered to you nearly instantly, and you flash your bike on your time easily. You never miss a day of riding, and no effort in removing the ECU. If there are any issues, you can revert to the full stock state.
READ AND CLEAR CHECK ENGINE LIGHTS - Full diagnostic of the ECU including the device.
STORE MULTIPLE MAPS - When you send in your ECU, you only get one map. You might be thinking, "Why would I need more than one map?" Storing multiple maps means you're able to flash for different configurations. If you're a serious track competitor, we can work with you to get you different mapping for different tracks. If, for example, you're adding modifications to your stock bike, we can email you a file that takes the new exhaust into account with the changes you need to optimize your bike's new modifications with no mailing needed.
GO BACK TO STOCK ANYTIME - Not only can you store multiple files, but you can also flash the original, stock file back into the bike at any time and for any reason for service, sales, and more.
ABILITY TO TUNE FUTURE BIKES - Customers swap bikes all the time! With our handheld tuner, you are able to put the first bike back to stock, then reset the device and use the same device on your next bike, with a simple and low-cost transfer fee.
ANY ISSUES? We can resolve nearly anything remotely, really quickly, with our engineering staff.
