(21-24) Kawasaki ZX-10R Stage 2 ECU Performance Flash Add-On

$299.00

(21-24) Kawasaki ZX-10R Stage 2 ECU Performance Flash Add-On

$299.00

The 2021 ZX-10R / RR is one of the most requested products we've had in recent memory. Unleash the full potential of your ZX10R/RR!

Quantity
SKU: BTM-2021-ZX10R-FLSH-2

Description

​MAKE SURE TO REVIEW THE TABS ABOVE: HANDHELD, DYNO RESULTS, RESOURCES AND MORE INFO!


The 2021 ZX-10R / RR is one of the most requested products we've had this year. Customers are very excited to see this bike unlocked. Being the first to unlock the 2021 is never enough for us. We want to make sure that people are not only satisfied with our flashes, we want them to be amazed with the results. After taking some time to develop our mapping, we think we have something everyone will be happy with.


WHAT’S INCLUDED IN ADDITION TO OUR STAGE 1 FEATURES

(CLICK HERE TO SEE STAGE 1 FEATURES)

  • Additional power (maximum usable while safety on stock engine)
  • Faster Quick Shifter (Race Tools)
  • Race Features Available For Track Use
  • KRT racing base throttle mapping for seamless racing throttle response
  • Immo Off (at request)
  • "M" Mode allows Based Race / oxygenated Fuel and Ignition Maps in medium power mode for better gains
  • More power found through optimized Injector Balancing in high rpms
  • “Ram Air” Map optimized

THE DETAILS ON ALL FEATURES

  • FUELING -  With custom tuning we can target better AFR (air/fuel ratio) plots to enhance not only racing performance, but also cruising and partial throttle inputs.
  • IGNITION - Optimized to make the most power while still being safe and reliable.
  • THROTTLE DERESTRICTION - Giving you the ability to utilize 100% of the throttle is paramount in track situations where you need all the power you can get on demand. The factory file has a “dead spot” on the top end that kills the bikes power curve when it should be making the most. This also means any kind of straight line acceleration also suffers. We remove these factory restrictions to ensure a smooth and predictable throttle, all the way to redline.
  • QUICK SHIFTER - We all know how slow the QS is stock. Our flash provides 50% shorter quick shifter up and down. Our tuning reduces "kill" times to make the quick shifter much faster than stock, and a better overall riding experience.
  • LOWER FAN-ON TEMP - Let’s face it, this bike rides a little on the hot side. To help not only the riders enjoyment but also keep the engine slightly cooler, we've lowered the fan-on temps.
  • INCREASED RPM LIMITER (at customer request) - The stock RPM limiter is set to 13,800 RPM. We have been testing 14,200 RPM with zero negative side effects. We set the RPM limiter for 14,200 RPM in all gears. This helps you stay in the powerband longer and reduces the need to shift at the track.
  • INCREASED TOP SPEED LIMITER - Removed so you can let the bike run free in any track environment.
  • EXHAUST VALVE MANAGEMENT - Improved and optimized for peak performance and sound
  • RACE FEATURES - Minor features unlocked for the purpose of track use
  • FUEL CUT - Optimized for better limiter feel and decel throttle response
  • IMMO OFF - Immobilizer off (AT YOUR REQUEST)
  • MODE BASED MAPPING - High power mode (F) will be a pump gas map and medium power mode  M) will have changed ignition and fuel mapping for racing fuel. +8-10hp on demand
  • INJECTOR BALANCING - More power found through injector balancing
  • RAM AIR / Intake flap open at all speeds - Changes to ram air mapping to maximize power and top end racing at high speed/circuit racing so the bike has enrichment in extreme environments

PLEASE NOTE

  • YOUR BIKE MUST HAVE ONE OF THESE ECU NUMBERS: (21175-1647, 21175-1662, 21175-1684, 21175-1643, 21175-1724, 21175-1650, 21175-1652, 21175-1655, 21175-1653, 21175-1646, 21175-1654, 21175-1648, 21175-1704, 21175-1646, 21175-1704, 21175-1648 and Race ECU).
  • If your bike has a different ECU number EMAIL US BEFORE PURCHASE. Your ECU number can be found on the ECU itself in the tail of the bike. We found the ECU numbers listed cover almost all 2021 ZX-10R's. We will be working to add more and will update this page when we do.
  • Due to the sensitive nature of the ZX-10R's AFR (air/fuel ratio) and the platforms almost endless aftermarket options, the file we deliver you may need the fueling to be adjusted to meet your bikes individual needs. In this instance we recommend a piggyback fuel controller and dyno time, or an "auto-tuner" that can aid you in correcting your fuel maps (if needed).
  • Stage 2 should be ran on 93 octane Shell V power pump gas or better to achieve best results

STAGE 2 REVIEW VIDEO




Don't be fooled by imitations with empty promises, see why everyone uses us:

CLICK HERE TO LEARN WHY YOU SHOULD PARTNER WITH BT MOTO

ANY FURTHER QUESTIONS OR LIKE TO SCHEDULE A CONSULTATION WITH A PERFORMANCE EXPERT?

REACH OUT TO [email protected] OR (877) 483-4031

Dyno Testing

DYNO PROVEN

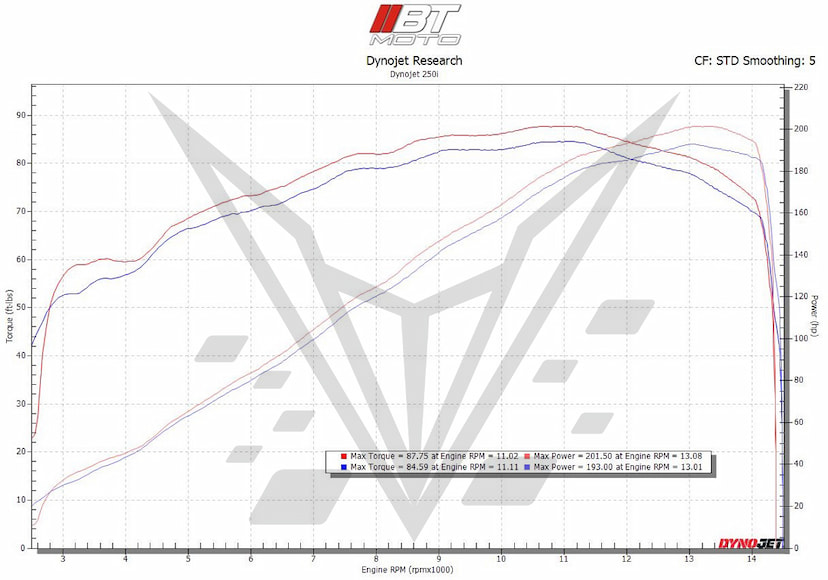

Our Stage 2 Flash goes a step further and allows the ZX10 to show its full capability. You can see an power added over the entire powerband that can easily be felt at the track.This ZX10 came in with Akrapovic and a filter. All testing done with same mods and all testing performed on 93 pump gas, same day.

BT Moto Stage 1193whp / 84wtq

BT Moto Stage 2201whp / 87wtq

ZX10_Stage 2

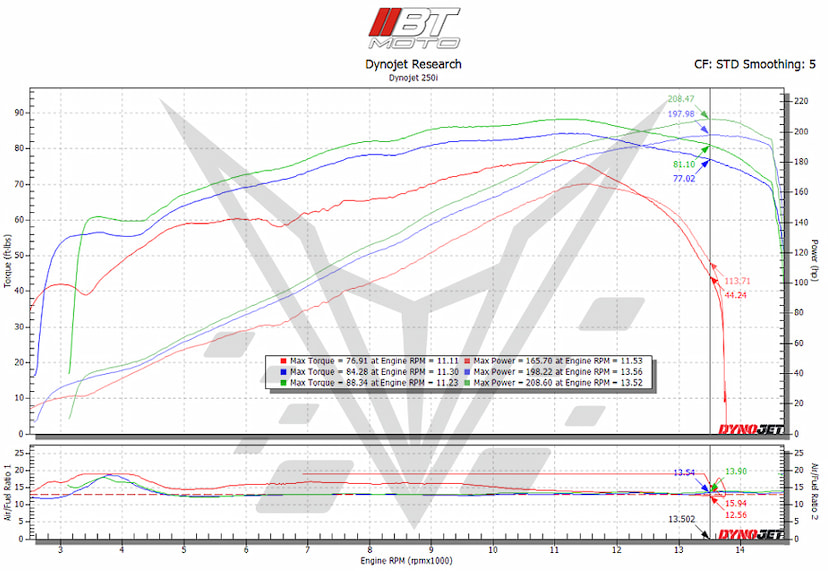

This is another ZX10 different than above. All testing done with same mods and same day. MR12 mapping is available in medium power mode with our flash.

Factory Tuning with 93 Pump Gas165whp / 76wtq

BT Moto Flashed with 93 Pump Gas198whp / 84wtq

BT Moto Flashed with MR12 Fuel208whp / 88wtq

MR12 ZX10R

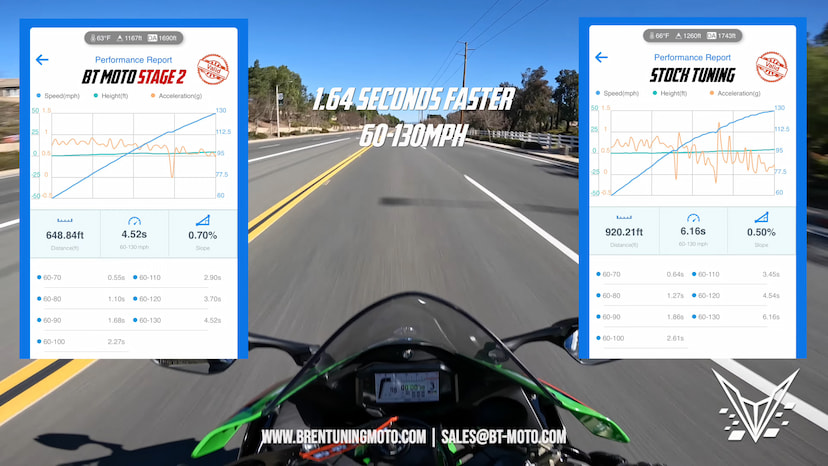

60-130MPH BEFORE AND AFTER

THE BT MOTO HANDHELD TUNER


WHAT IS A HANDHELD TUNER AND WHAT ARE THE BENEFITS OF HAVING ONE?

Thoroughly tested by our own engineers, not just for its function but also durability.  We purposefully dropped this thing about 100 times just to make sure if you accidentally dropped it, it would still be a usable device.

So why buy it when you can just send in your ECU for flashing and spend less? Let's see the breakdown.

  • NO DOWNTIME - No need to send in your ECU or remove it from your bike at all.  You order the handheld, it get's delivered to you, you flash your bike.  You never miss a day of riding and no effort removing the ECU.
  • STORE MULTIPLE MAPS - When you send in your ECU, you only get one map.  You might be thinking, "why would I need more than one map?".  Storing multiple maps means you're able to flash for different fuels.  If you're a serious track competitor, we can work with you to get you different mapping for different tracks.  If, for example, you're add an exhaust to your stock bike, we can email you a file that takes the new exhaust into account with the changes you need to optimize your bike's new modifications.
  • GO BACK TO STOCK ANYTIME - Not only can you store multiple race maps, you can also flash the original, stock file back into the bike at any time and for any reason.

***DISCLAIMER: FOR CLOSED COURSE COMPETITION USE ONLY. PENDING CARB APPROVAL. NOT INTENDED FOR STREET USE**

Resources/Downloads

Resources Downloads

Compatibility

  • twitter
  • Kawasaki ZX-10 R / RR (21-24)

Documents

Device Reset FAQ and How-To PDF
Download
BT Moto Handheld Instructions
Download
BT Moto Flasher+ Troubleshooting Guide
Download
Handheld Transfer FAQ
Download

Shipping

Weight:
2 lbs
Dimensions:
10x10x10 in

BT Moto currently ships directly through UPS. We offer domestic and international shipping.

We ship with UPS as it’s more reliable, has the least amount of shipping issues, and is continuously better than other shipping methods we’ve tried.

Shipping options will automatically display during the checkout process and depends on the size of your order, location etc.

For the majority of our products, the following shipping options through UPS are available.

ups
  • Ground (typically 3-7 business days)
  • 2-Day Air
  • Next Day Air
International Shipping rates are based on a Flat Fee Delivery. They are as follows :

Canada:

$70.00

Qatar, Denmark, Finland, Spain, Switzerland:

$90.00

Belgium, Germany:

$80.00

International Hong Kong, India, Indonesia, Israel, Japan, Korea South, Saudi Arabia, Taiwan, France, Ireland, Netherlands, Portugal, United Kingdom, Dominican Republic, Mexico, Australia, New Zealand :

$80.00
