(21-24) BMW S1000R K63 Stage 2 ECU Flash Upgrade

$299.00

(21-24) BMW S1000R K63 Stage 2 ECU Flash Upgrade

$299.00

Making your Single R the beast it should have always been!

Quantity
SKU: BTM-HHS2R21+

Description

Following the release of our popular Stage 1 Flash we needed to sit down and really start to look at what the 2021-2024 truly has to offer.  Anyone with our Stage 1 Flash will tell you how much it improved acceleration, fixed the OEM idle issues, and made the motorcycle feel better and smoother overall.  Stage 2 has months of research and development behind it as well as additional datalogging and dyno testing.  The revised 2021 S1000R is familiar to us but also completely changed. To that end we were able define new ECU strategies that we can help make this already impressive bike even more impressive.   Stage 2 is a feature map making the bike more consistent, more reliable, and smoother.  Combined with our IAT Relocation and intake flapper delete kit results in a much improved motorcycle!


BENEFITS OVER STAGE 1

(CLICK HERE TO SEE STAGE 1 DETAILS)

Includes all benefits of Stage 1, with these added features:

  • Octane adjustments
  • Corrected cold/warm start idle
  • Re-calibrated timing
  • Lower max lambda, leaner high RPM Target
  • Higher RPM limit without throttle cut for roll racers
  • 30% faster up and downshifts
  • Can utilize our optional IAT relocation kit and intake flapper removal kit

HOW DO WE ACCOMPLISH THIS WITH STAGE 2?

  • Octane adjustments for auto adaptation on pump gas for US and international fuels 91-94 octane 95-100 RON. Utilizing the multiple ignition maps and factory widebands, we are able to increase performance based on knock detection. This also means if you have some bad fuel, the motorcycle will still compensate and put the bike into safety mapping just like the OEM ECU would. This ensures your bike stays consistent and reliable.
  • Corrected cold/warm start idle for finer tuning beyond Stage 1. Stage 1 did a lot to correct the startup issues the 21-24 S1000R was having. Stage 2 goes a step further. There is no longer a high idle that transitions into a lower idle. The idle remains static without any lean popping, idle hunting or stalling.
  • Re-calibrated timing for higher octanes to make use of race fuels on same tune. The 21-24 S1000R has multiple ignition maps and based on knock feedback, the bike will start to adjust to different timing maps. This means if you have a high octane fuel in the bike or race fuel and knock isn’t present, the bike will transition to a more aggressive timing map automatically. A more aggressive timing map will safely allow the bike to make more power. No more flashing every time you want to use race gas although we can still provide specific race fuel mapping designed to be used on ONLY race gas. This feature is most beneficial when you are on the track or street and don’t have your handheld available to swap maps.
  • Lower max lambda, leaner high RPM Target for a few more horsepower. AFR (air/fuel ratio) adjustments have been made to Stage 2 to be more aggressive to get a little more power out of the bike while remaining safe.
  • Higher RPM limit without throttle cut for roll racers (optional) With Stage 2 we are able to raise the RPM limiter to 12,500 RPM while also making sure the raised RPM event is not stored in the ECU. We have also adjusted the spark and fuel cuts so when the rev limit is hit, the bike doesn’t feel like you slammed on the brakes, it’s more gentle now.
  • 30% faster up and downshifts over Stage 1 and now allows the use of fast shift sensor products on the market if desired.

BT MOTO IAT RELOCATION AND FLAPPER KIT


Optional add on descriptions available via links below. These items will need to added to your cart separately.

IAT Relocation kit

Flapper removal kit

PLEASE NOTE: DUE TO A HIGH DEMAND OF CUSTOMERS WANTING TO SKIP THE FLAPPER AND IAT RELOCATION, OUR FLAPPER AND IAT KITS ARE NOW OPTIONAL ADD-ONS, STAGE 2 MAPPING WILL WORK WITH OR WITHOUT THOSE MODIFICATIONS.



Review Video


Don't be fooled by imitations with empty promises, see why everyone uses us:

CLICK HERE TO LEARN WHY YOU SHOULD PARTNER WITH BT MOTO

ANY FURTHER QUESTIONS OR LIKE TO SCHEDULE A CONSULTATION WITH A PERFORMANCE EXPERT?

REACH OUT TO [email protected] OR (877) 483-4031

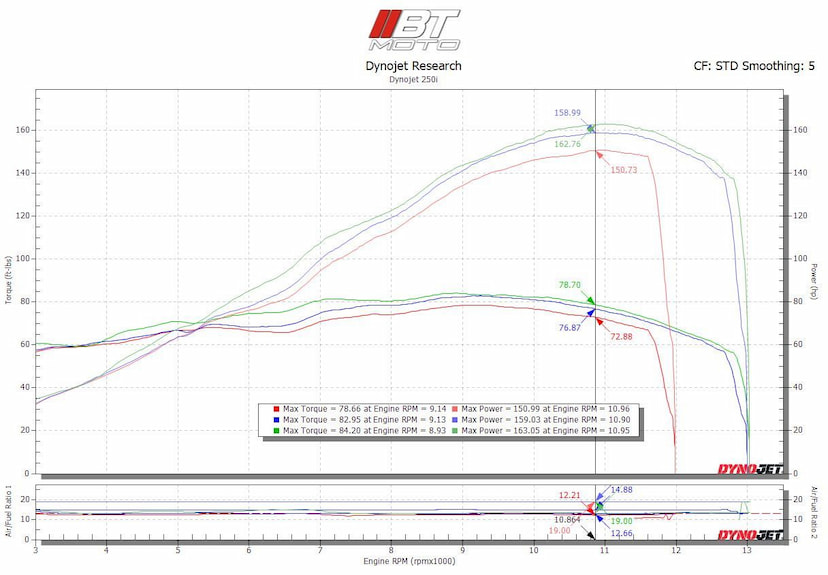

Dyno Testing

DYNO PROVEN

You can see that while Stage 1 has a large gain over stock, our Stage 2 has a greater gain.  Peak gained 4whp over Stage 1 but the mid and low-range of the RPM band gained huge.  This is where you'll be riding your motorcycle, mostly, and this is where the largest gain is.

RED LINE = STOCK TUNING (150WHP / 78WTQ)

BLUE LINE = BT Moto STAGE 1 (159WHP / 82WTQ)

GREEN LINE = BT Moto STAGE 2 (163WHP / 84WTQ)


**Testing performed with 93 octane pump gas. Usage of a lower octane will yield lower overall power.**
