2024–2027 Triumph Speed Triple 1200 Stage 1+ ECU Flash Tune + Handheld Tuner

$799.00

2024–2027 Triumph Speed Triple 1200 Stage 1+ ECU Flash Tune + Handheld Tuner

$799.00

Finally a true tuning solution for your 24+ Triumph Speed Triple 1200. This has been years in the making, allowing you to seamlessly tune your ECU via our easy to use handheld tuning device or mail in process!

Quantity
SKU: BTM-TRI-ST-1200-24

Description

​THIS PRODUCT IS 50-STATE LEGAL FOR SPEED TRIPLE 1200 MODEL YEAR 2024 (C.A.R.B. EO# D-868-18)

PART NUMBER: BTM-TRIUMPHTRIPLE-CARB-S1

​MAKE SURE TO REVIEW THE TABS ABOVE: HANDHELD, DYNO RESULTS, RESOURCES AND MORE INFO!


THIS PRODUCT IS FINALLY AVAILABLE VIA OUR HANDHELD TUNER! ALLOWING YOU TO SEAMLESSLY TUNE YOUR MOTORCYCLE FROM THE COMFORT OF YOUR OWN HOME OR SHOP.


2024-2027 TRIUMPH SPEED TRIPLE 1200 STAGE 1+ ECU PERFORMANCE CALIBRATION

Unlock the full performance potential of your Triumph Speed Triple 1200 with BT Moto's Stage 1+ ECU Performance Calibration. Developed through extensive dyno testing and real-world development, our calibration delivers improved horsepower, throttle response, acceleration, and overall rideability.

The factory Triumph ECU uses electronic throttle and torque management strategies that can limit available engine performance. BT Moto optimizes these strategies directly within the factory ECU, delivering stronger midrange acceleration, improved partial-throttle response, and a wider, more usable powerband.

More horsepower. Sharper throttle response. Stronger acceleration. All through the factory ECU.


STAGE 1+ PERFORMANCE FEATURES

  • Increased Horsepower & Torque: Improved power delivery throughout the RPM range, with significant gains in midrange and top-end performance.
  • Reduced Factory Throttle Restrictions: Optimized electronic throttle strategies allow improved access to the engine's available performance.
  • Improved Partial-Throttle Performance: Refined power delivery at 25%, 50%, 75%, and 100% throttle for stronger real-world acceleration.
  • Optimized Fueling & Ignition: Refined ECU strategies designed to improve engine response.
  • Stronger Midrange & Top-End Power: Improved roll-on acceleration and more consistent power delivery approaching redline.
  • Improved Everyday Rideability: Sharper throttle response, smoother transitions, and more predictable acceleration.
  • RPM & Speed Limiter Optimization: Revised factory restrictions where applicable to the specific exempt ECU calibration.
  • Factory ECU Integration: No piggyback controllers, additional wiring, or permanently installed external tuning hardware.

DYNO-PROVEN PERFORMANCE ON 91 OCTANE

BT Moto's Stage 1+ calibration was developed using same-day, back-to-back Dynojet testing on a stock Triumph Speed Triple 1200 with California91-octane pump gasoline.

- Factory ECU: 165 WHP / 90 WTQ

- BT Moto Stage 1+: 177 WHP / 92 WTQ

- Peak Gains: +12 WHP / +2 WTQ

Beyond peak horsepower, the improvement becomes increasingly noticeable above approximately 7,000 RPM, where factory electronic restrictions can limit available performance.

Our calibration delivers stronger acceleration and more consistent power delivery throughout the upper RPM range, without mechanical changes to the motorcycle.

Results reflect back-to-back testing on 91-octanepump gasoline. Individual results may vary.


IMPROVED THROTTLE RESPONSE & RIDEABILITY

Performance isn't just about maximum horsepower. Our Stage 1+ calibration improves electronic throttle control, fueling, ignition, and torque management throughout the operating range.

Testing at 25%, 50%, 75%, and 100% throttle helps optimize power delivery during the conditions riders experience most, including passing, corner exits, and everyday acceleration.

The result is stronger midrange response, more immediate throttle feedback, and smoother, more predictable power delivery throughout the rev range.


OEM+ PERFORMANCE WITHOUT UNNECESSARY HARDWARE

BT Moto recalibrates the factory Triumph ECU directly rather than relying on piggyback fuel controllers or external tuning modules.

This approach improves performance while retaining the motorcycle's sophisticated factory electronics and engine management integration.


IMPORTANT ECU COMPATIBILITY INFORMATION

Certain ECU software versions may require a one-time bench read before the initial Stage 1+ calibration can be installed.

If required, the ECU must be sent to BT Moto for initialization. Once completed, future supported flashing can be performed without repeatedly shipping the ECU.

BT Moto Stage 1+ — More usable performance, sharper throttle response, and factory-level integration.


MAIL IN ECU FLASH OPTION

For customers who do not want or need the BT Moto Handheld Tuner, a mail in ECU flash option is also available.

With the mail in option, you remove your ECU and send it directly to BT Moto for programming. We flash the appropriate Stage 1+ calibration directly to your ECU and return it ready for installation.

For mail in ECU customers, we recommend having an OBD2 scan tool and Triumph EU5 diagnostic adapter available in case a one time check engine light needs to be cleared after reinstalling the ECU.

Recommended scan tool: Autel AL319​
Required adapter: OBD2 to Triumph EU5 diagnostic adapter​

Handheld tuning for maximum flexibility or mail in ECU flashing for simplicity, choose the option that works best for you.


Review Video

INCLUDES DYNO TESTING



Don't be fooled by imitations with empty promises, see why everyone uses us:

CLICK HERE TO LEARN WHY YOU SHOULD PARTNER WITH BT MOTO​

HAVE ANY FURTHER QUESTIONS, OR WOULD YOU LIKE TO SCHEDULE A CONSULTATION WITH A PERFORMANCE EXPERT?

REACH OUT TO [email protected] OR (877) 483-4031

Dyno Testing

Stock (24-26) Triumph Speed Triple 1200 BT Moto Stage 1 (5th Gear).

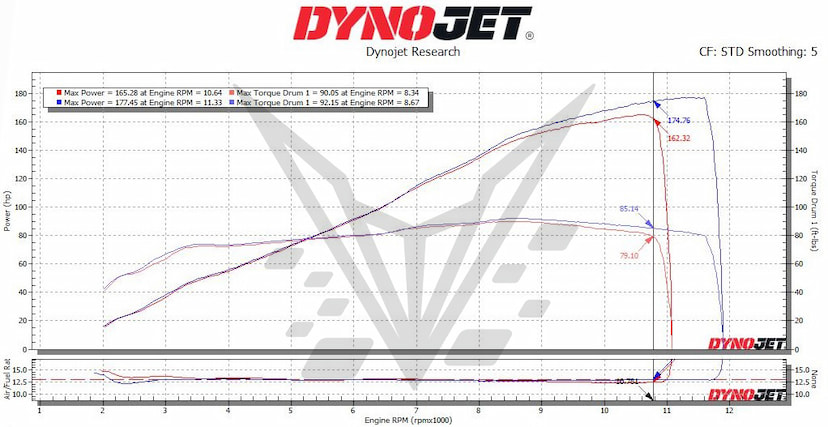

The graph below shows stock tuning vs BT Moto Stage 1 with no changes other than tuning. Same gas, same day, same dyno, same strap. The gains come from removing torque limiters and custom fueling/ignition with an extended RPM limiter. We really start to see a separation in power around 7,000RPM that carries all the way to the extended RPM limiter. This extended RPM limiter provides more power while also giving you a wider powerband.

RED = STOCK, PUMP GAS - 165WHP / 90WTQ

BLUE = STAGE 1 with BT MOTO, PUMP GAS - 177WHP / 92WTQ

Speed Triple Dyno

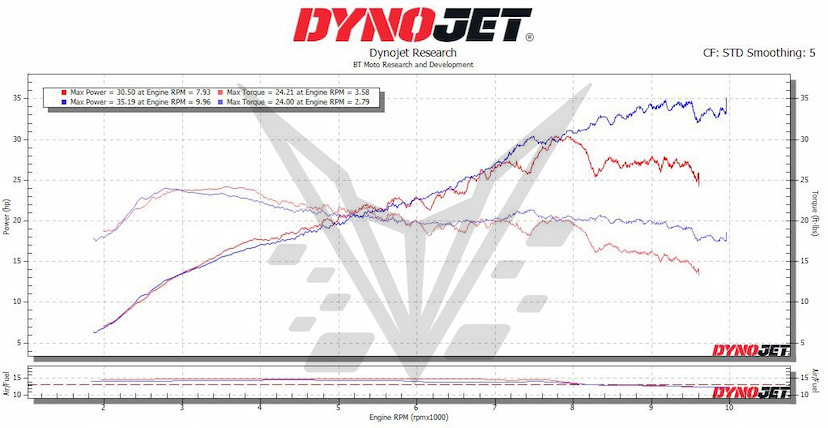

The graph below shows the gains at 25% throttle. With the throttle response raised over stock you can see partial throttle gains up top to maintain a linear power curve, and not just cut power at a certain RPM.

Speed Triple 1200 Dyno 25%

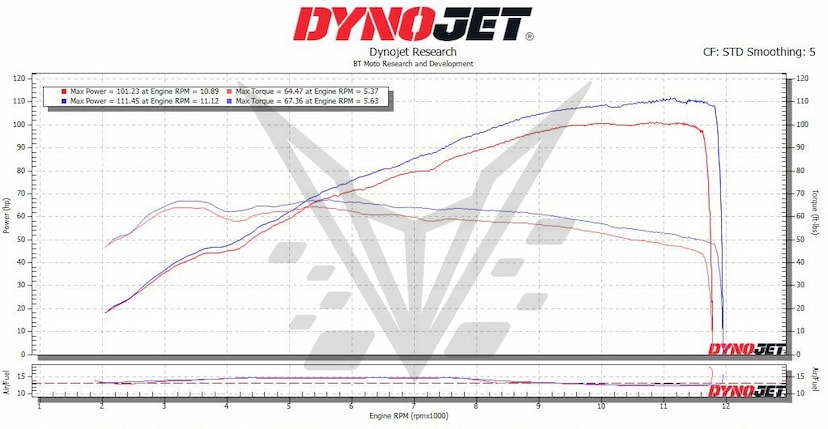

​The graph below shows the gains at 50% throttle. With the throttle response raised over stock you can see partial throttle gains across the entire RPM band. Light to light this is a whole different bike to the rider, but tip-in throttle is still nice and smooth.

Speed Triple 1200 Dyno 50%

**All runs performed same day, back to back on an independent DynoJet**

**Testing performed with California ACN 91 octane pump gas. Usage of a lower octane will yield smaller power gains. Higher octane larger gains**

THE BT MOTO HANDHELD TUNER

 BT MOTO HANDHELD PERFORMANCE TUNER AND WHAT ARE THE BENEFITS OF HAVING ONE?

Custom tuning at your fingertips on your schedule. Read and write your own motorcycle's ECU from the comfort of your home. No need to bring your bike to a shop, our easy-to-use handheld can be used in your spare time with quick turnaround. You now have a virtual custom personal tuner at your fingertips. Thoroughly tested by our own engineers, not just for its function but also for its durability, our easy-to-use handheld is just what you'll need to help get the most from your motorcycle!

CAN I JUST SEND IN MY ECU FOR FLASHING AND SPEND LESS? LET'S GO OVER THE ADVANTAGES.

  • NO DOWNTIME - No need to send in your ECU or remove it from your bike at all. You order the handheld, it gets delivered to you nearly instantly, and you flash your bike on your time easily. You never miss a day of riding, and no effort in removing the ECU. If there are any issues, you can revert to the full stock state.
  • READ AND CLEAR CHECK ENGINE LIGHTS - Full diagnostic of the ECU including the device.
  • GO BACK TO STOCK ANYTIME - You can flash the original stock file back into the bike at any time and for any reason for service, sales, and more.
  • ABILITY TO TUNE FUTURE BIKES - Customers swap bikes all the time! With our handheld tuner, you are able to put the first bike back to stock, then reset the device and use the same device on your next bike, with a simple and low-cost transfer fee.
  • ANY ISSUES? We can resolve nearly anything remotely, really quickly, with our engineering staff.
